产品规格

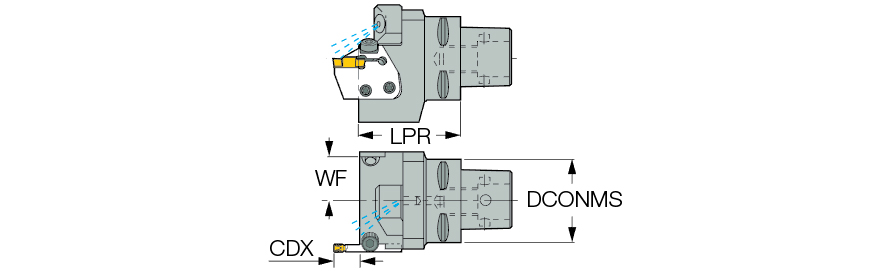

| Protruding Length (LPR) | 60 mm | 测量方式 | Metric |
| Connection Diameter Machine Side (DCONMS) | 80 mm | 刀体材质 | Steel |
| Functional Width (WF) | 37.5 mm | Overall Length (OAL) | 108 mm |
| Shank Size (SS) | 80 | 单位 | M |
| Tool Type | ISO 26623-1 (CAMFIX, CAPTO) |
产品特性
| 系列描述 | CAMFIX (ISO 26623-1标准）可换式刀柄，用于夹持应用于切断、切槽、车削及端面切削的MODU-GRIP刀夹 | 系列名称 | C#-MAHD |
| COO | Israel | 品牌 | Iscar |
Shipping Info
包装重量
3.2570
名字
Adapters
系列名称
C#-MAHD
品牌
Iscar
Related Documentation
Screw SR14-519 for DGAD, HGAD and PCADR/L adapters. Supplied in the attached plastic bag. Screw SR M6X20-XT for CGPAD, HGPAD, TGPAD and FGPAD adapters. Used to prevent chips from entering the upper locking screw hole of adapter above. Supplied with the tools in the plastic bag.
