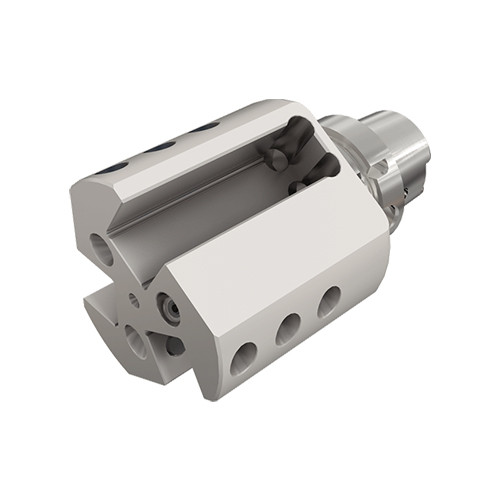

HSK A63WH ASHR 25 3
Triple square shank tool adapters with HSK exchangeable shanks for mounting on turn-mill machines.
Price: Log in For Price
产品规格

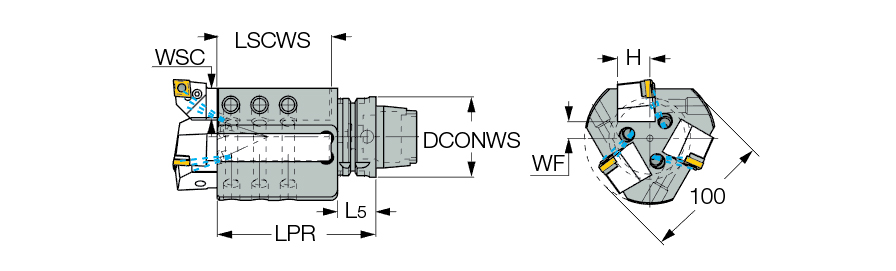

| Protruding Length (LPR) | 125 mm | Shank Size (SS) | 63 |
| Connection Diameter Machine Side (DCONMS) | 63 mm | Tool Type | HSK -T (ISO 12164-3) |
| Shank Width (B) | 25 mm | 测量方式 | Metric |
| Shank Height (H) | 25 mm | 刀体材质 | Steel |
| Body Length (LB) | 30 mm | Overall Length (OAL) | 157 mm |
| Functional Width (WF) | 0 mm | 单位 | M |
产品特性
| 系列描述 | Triple square shank tool adapters with HSK exchangeable shanks for mounting on turn-mill machines. | 系列名称 | HSK A63WH-ASHR/L-3 |

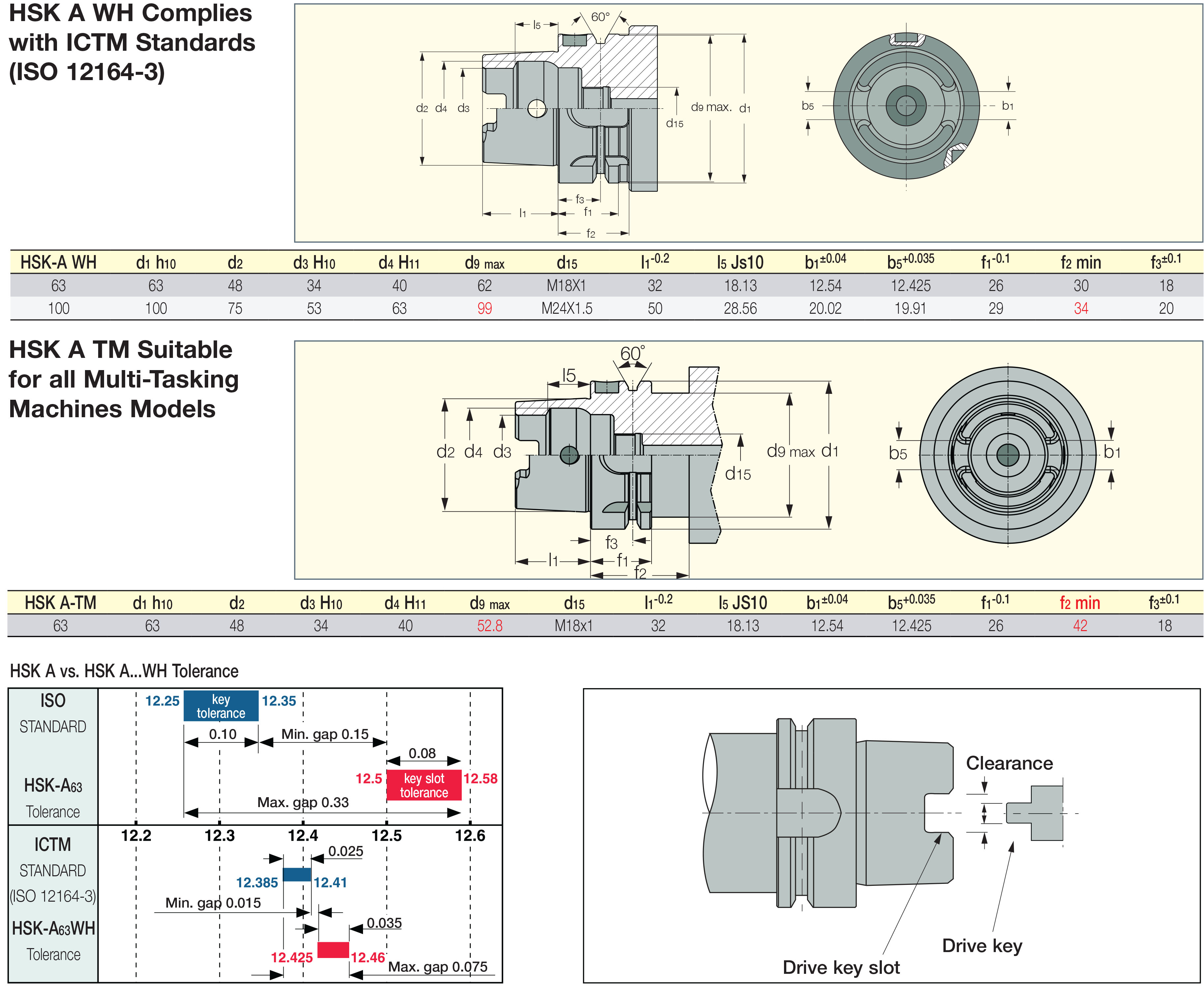

| 备注 | Complies with ICTM standard (ISO 12164-3) A cooling tube must be used with all coolant through HSK spindles (should be ordered separately) For shank dimensions, click on More Info | 品牌 | Iscar |
| COO | Italy |
Shipping Info
包装重量
3.7970
名字
Adapters
系列名称
HSK A63WH-ASHR/L-3
品牌
Iscar
