产品规格
| Overall Length (OAL) | 16 mm | 刀体材质 | Steel |
| Body Diameter (BD) | 16 mm | 应用 | | 内孔背车，80°刀尖角菱形刀片 | |
| Connection Diameter Minimum Workpiece Side (DCONNWS) | 20 mm | Tool Type | Indexble Boring heads |
| Connection Diameter Maximum Workpiece Side (DCONXWS) | 24 mm | Cutting Diameter Minimum (DCN) | 20 mm |
| Shank Size (SS) | BHR MB16-16 | 测量方式 | Metric |
| Cutting Diameter Maximum (DCX) | 24 mm | 单位 | M |
| Master Insert Identification (MIID) | CCMT 0602... |
产品特性
| 系列描述 | 反镗刀夹-用于BHR和TCH AL类型的粗镗头 | COO | Italy |

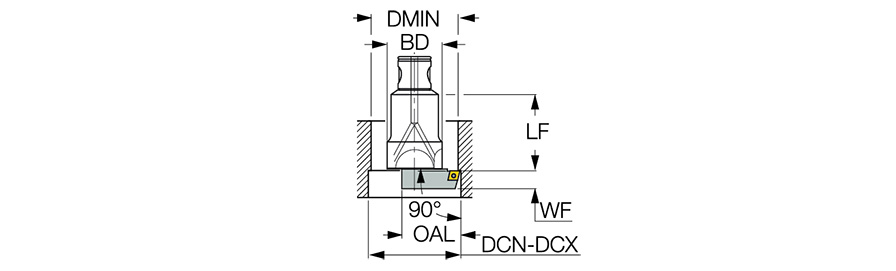

| 备注 | DMIN=（最小镗削直径）=（DCN+BD=1)/2 BD=镗头直径尺寸 |
Shipping Info
包装重量
0.0250
