产品规格

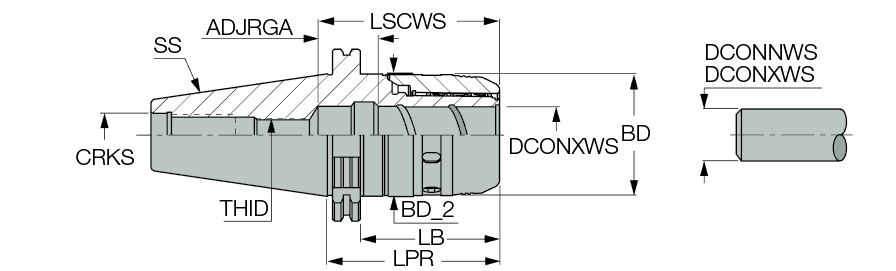

| Body Diameter (BD) | 51 mm | Connection Diameter Minimum Workpiece Side (DCONNWS) | 6 mm |
| Protruding Length (LPR) | 95 mm | 测量方式 | Metric |
| Connection Diameter Maximum Workpiece Side (DCONXWS) | 20 mm | 刀体材质 | Steel |
| Shank Size (SS) | 40 | Connection Code Machine Side (CCMS) | DIN69871 |
| Tool Type | DIN 69871 | 单位 | M |
产品特性
| 系列描述 | 带DIN 69871 AD/B型锥柄的强力刀柄 | 系列名称 | DIN69871-MAXIN |
| 备注 | 夹持DCONXWS直径刀具时性能最优，变径套会降低夹持力 B表示带内冷孔。 | 品牌 | Iscar |
| COO | Israel |
Shipping Info
包装重量
1.7520
名字
Milling Chucks
系列名称
DIN69871-MAXIN
品牌
Iscar
