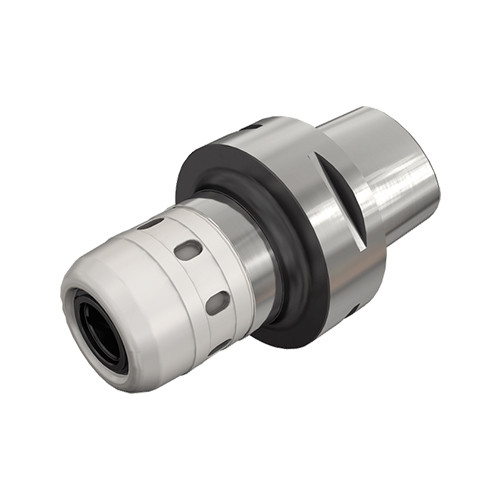

C8 MAXIN20X95
MAXIN power chucks with CAMFIX (ISO 26623-1 standard) exchangeable, tapered shanks.
Price: Log in For Price
产品规格

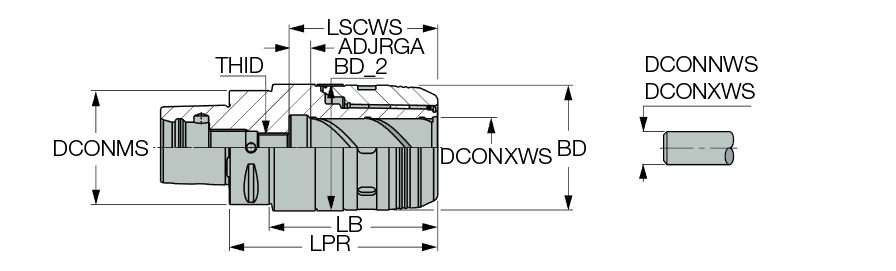

| Body Diameter (BD) | 51 mm | Connection Diameter Minimum Workpiece Side (DCONNWS) | 6 mm |
| Protruding Length (LPR) | 96 mm | 测量方式 | Metric |
| Connection Diameter Maximum Workpiece Side (DCONXWS) | 20 mm | 刀体材质 | Steel |
| Shank Size (SS) | 80 | 单位 | M |
| Tool Type | ISO 26623-1 (CAMFIX, CAPTO) |
产品特性
| 系列描述 | MAXIN power chucks with CAMFIX (ISO 26623-1 standard) exchangeable, tapered shanks. | 系列名称 | C#-MAXIN |
| 备注 | 适用于硬质合金和高速钢刀具 调节螺钉有内冷孔 夹持DCONXWS直径刀具时性能最优，变径套会降低夹持力 | 品牌 | Iscar |
| COO | Israel |
Shipping Info
包装重量
2.6270
名字
Milling Chucks
系列名称
C#-MAXIN
品牌
Iscar
