ER32 SRK 3/8X1.500 CX

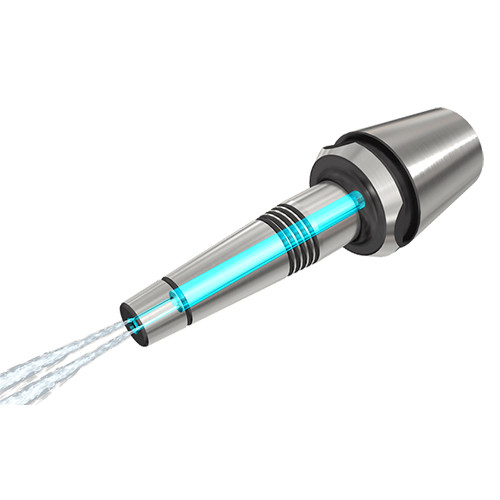

Thermal shrinking chucks with integral ER collet and jet coolant grooves, for solid carbide tools only.
Price: Log in For Price
产品规格
| Connection Diameter Machine Side (DCONMS) | 1.26″ | Body Length Maximum (LBX) | 1-1/2″ |
| Connection Diameter Workpiece Side (DCONWS) | 3/8″ | Clamping Length Workpiece Side (LSCWS) | 1.547″ |
| Shank Size (SS) | ER32 | 测量方式 | Inch |
| Body Diameter (BD) | 0.838″ | 刀体材质 | Steel |
| Body Taper End Diameter (BTED) | 0.63″ | 单位 | I |
产品特性
| 系列描述 | Thermal shrinking chucks with integral ER collet and jet coolant grooves, for solid carbide tools only. | 系列名称 | ER-SRK-CX |
| 备注 | 仅用于硬质合金刀具 使用刀具内冷时，须取下预置螺钉。 | 品牌 | Iscar |
| COO | Israel |
Shipping Info
包装重量
0.5071
名字
Shrink Fit Holders
系列名称
ER-SRK-CX
品牌
Iscar
