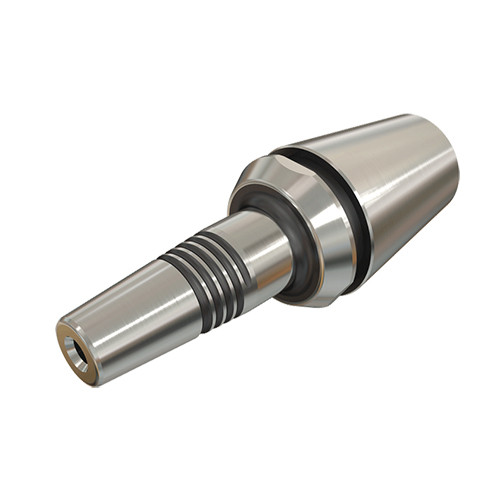

ER32 SRK 5/16X2.500
Thermal shrinking chucks with integral ER collet, for solidcarbide tools only.
Price: Log in For Price
产品规格

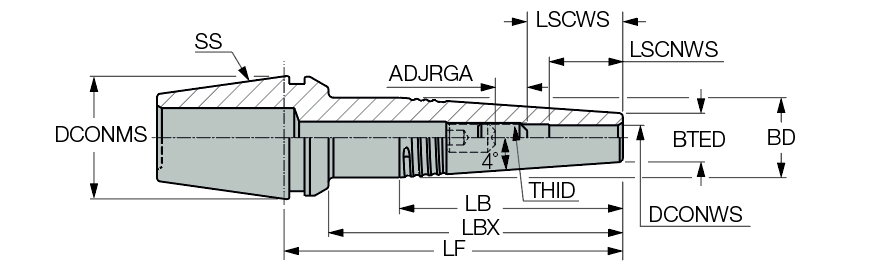

| Connection Diameter Machine Side (DCONMS) | 32″ | Clamping Length Workpiece Side (LSCWS) | 1.22″ |
| Connection Diameter Workpiece Side (DCONWS) | 0.312″ | 测量方式 | Inch |
| Shank Size (SS) | ER32 | Tool Type | Accessories and Devices |
| Body Length (LB) | 1.91″ | 刀体材质 | Steel |
| Body Length Maximum (LBX) | 2-1/2″ | 单位 | I |
| Overall Length (OAL) | 4.075″ |
产品特性
| 系列描述 | Thermal shrinking chucks with integral ER collet, for solidcarbide tools only. | 系列名称 | ER-SRK |
| 备注 | 仅用于硬质合金刀具 使用刀具内冷时，须取下预置螺钉。 | 品牌 | Iscar |
| COO | Israel |
Shipping Info
包装重量
0.5335
名字
Shrink Fit Holders
系列名称
ER-SRK
品牌
Iscar
