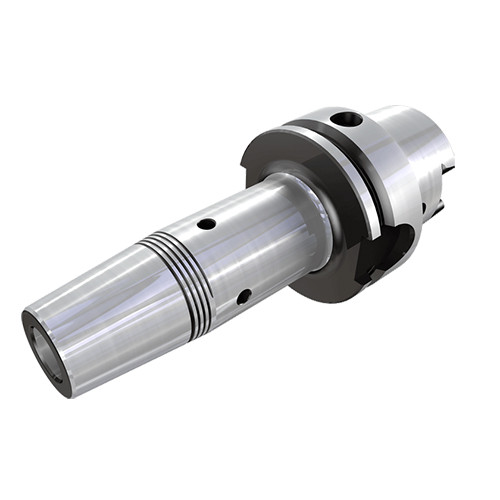

HSK A100 SRKIN20X160
Thermal shrink chucks with HSK DIN69893 Form A tapered shanks, for solid carbide, HSS and steel tools.
Price: Log in For Price
产品规格
| Connection Diameter Machine Side (DCONMS) | 100 mm | 测量方式 | Metric |
| Connection Diameter Workpiece Side (DCONWS) | 20 mm | Tool Type | HSK |
| Shank Size (SS) | 100 | 刀体材质 | Steel |
| Body Length (LB) | 57 mm | Connection Code Machine Side (CCMS) | HSK |
| Protruding Length (LPR) | 160 mm | 单位 | M |
| Overall Length (OAL) | 210 mm |
产品特性
| 系列描述 | Thermal shrink chucks with HSK DIN69893 Form A tapered shanks, for solid carbide, HSS and steel tools. | 系列名称 | HSK A-SRKIN |
| 备注 | A cooling tube must be used with all coolant through HSK spindles (to be ordered separately) Use only inductive heating device for SRKIN holders For solid carbide, HSS and steel tools. For shank dimensions and shrink units information, Click on More Info ISCAR cannot guarantee an unbalance value less than 1 gr x mm | 品牌 | Iscar |
| COO | Israel |
Shipping Info
包装重量
3.2550
名字
Shrink Fit Holders
系列名称
HSK A-SRKIN
品牌
Iscar
