产品规格

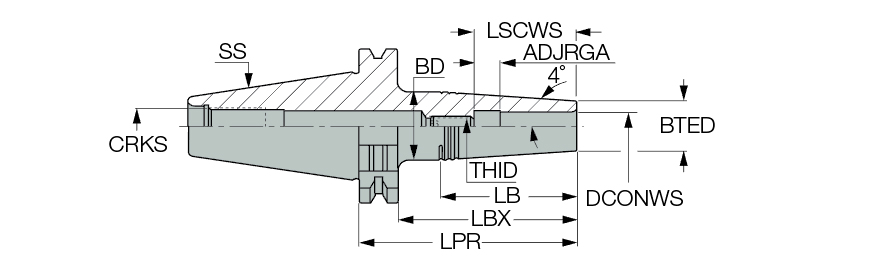

| Connection Diameter Machine Side (DCONMS) | 40 mm | 测量方式 | Metric |
| Connection Diameter Workpiece Side (DCONWS) | 12 mm | Tool Type | DIN 69871 |
| Shank Size (SS) | 40 | 刀体材质 | Steel |
| Body Length (LB) | 56.6 mm | Connection Code Machine Side (CCMS) | DIN69871 |
| Protruding Length (LPR) | 104.1 mm | 单位 | M |
| Overall Length (OAL) | 172.5 mm |
产品特性

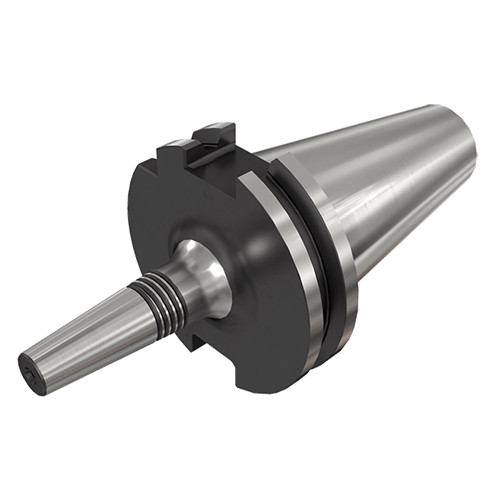

| 系列描述 | 带DIN 69871 AD型锥柄的SHRINKIN热缩刀柄 | 系列名称 | DIN69871-SRK |
| 备注 | 仅适用于硬质合金刀具 关于热缩装置信息，点击“更多信息” 预置螺钉无内冷孔 使用刀具内冷，必须移除预置螺钉 | 品牌 | Iscar |
| COO | Israel |
Shipping Info
包装重量
1.1320
名字
Shrink Fit Holders
系列名称
DIN69871-SRK
品牌
Iscar
