产品规格

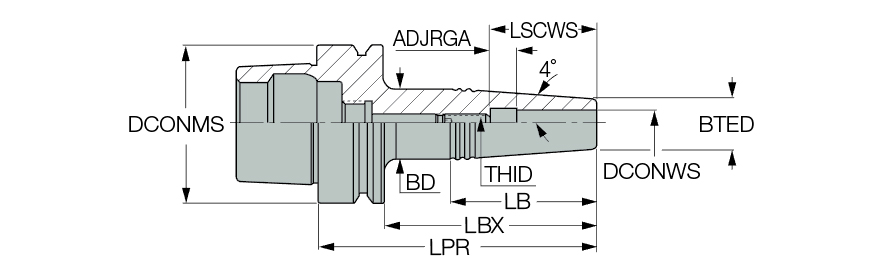

| Connection Diameter Machine Side (DCONMS) | 32 mm | Overall Length (OAL) | 81 mm |
| Connection Diameter Workpiece Side (DCONWS) | 3 mm | Clamping Length Workpiece Side (LSCWS) | 16 mm |
| Shank Size (SS) | 32 | 测量方式 | Metric |
| Body Length (LB) | 30 mm | Tool Type | HSK |
| Body Diameter (BD) | 13 mm | 刀体材质 | Steel |
| Body Taper End Diameter (BTED) | 10 mm | Connection Code Machine Side (CCMS) | HSK |
| Protruding Length (LPR) | 65 mm | 单位 | M |
| Body Length Maximum (LBX) | 45 mm |
产品特性

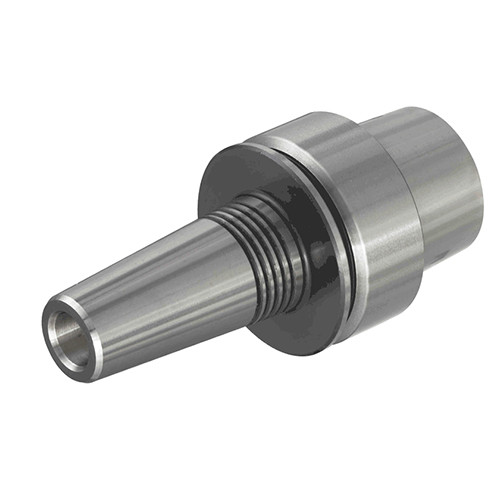

| 系列描述 | 带DIN69893标准E型HSK刀柄的SHRINKIN热缩刀柄，仅适用于硬质合金刀具。 | 系列名称 | HSK E-SRK |
| 备注 | 带内冷的HSK主轴使用冷却液的时候必须外接冷却管（需要单独订购） 仅用于装夹硬质合金刀具 关于柄部尺寸点击“详细信息”。 | 品牌 | Iscar |
| COO | Israel |
Shipping Info
包装重量
0.1940
名字
Shrink Fit Holders
系列名称
HSK E-SRK
品牌
Iscar
