产品规格

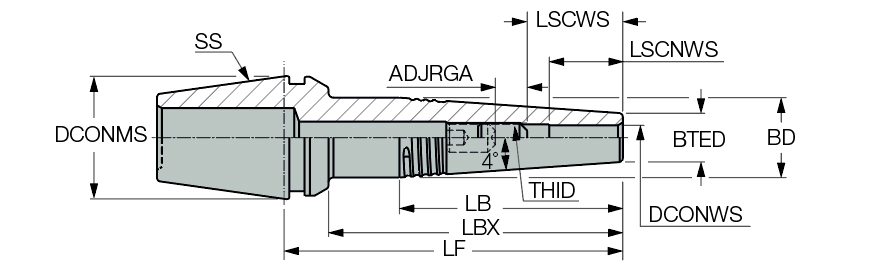

| Connection Diameter Machine Side (DCONMS) | 32 mm | Clamping Length Workpiece Side (LSCWS) | 38 mm |
| Connection Diameter Workpiece Side (DCONWS) | 12 mm | 测量方式 | Metric |
| Shank Size (SS) | ER32 | Tool Type | Spring Collets |
| Body Length (LB) | 28 mm | 刀体材质 | Steel |
| Body Length Maximum (LBX) | 85 mm | 单位 | M |
| Overall Length (OAL) | 125 mm |
产品特性
| 系列描述 | 尾部为ER筒夹接口的整体式热缩刀杆，仅用于硬质合金刀具 | 系列名称 | ER-SRK |
| 备注 | 仅用于硬质合金刀具 使用刀具内冷时，须取下预置螺钉。 | 品牌 | Iscar |
| COO | Israel |
Shipping Info
包装重量
0.3490
名字
Shrink Fit Holders
系列名称
ER-SRK
品牌
Iscar
