产品规格

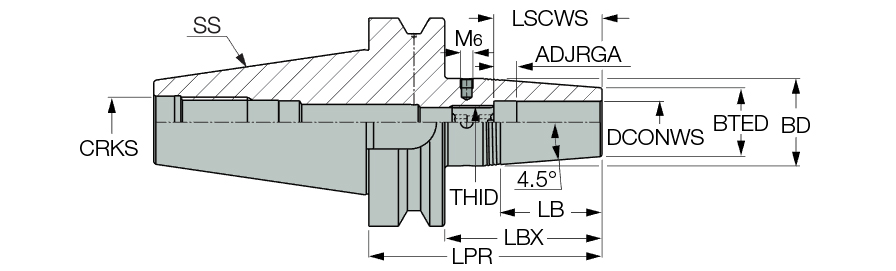

| Connection Diameter Machine Side (DCONMS) | 50 mm | 测量方式 | Metric |
| Connection Diameter Workpiece Side (DCONWS) | 20 mm | Tool Type | BT |
| Shank Size (SS) | 50 | 刀体材质 | Steel |
| Body Length (LB) | 57.2 mm | Connection Code Machine Side (CCMS) | BT |
| Protruding Length (LPR) | 100 mm | 单位 | M |
| Overall Length (OAL) | 203.3 mm |
产品特性

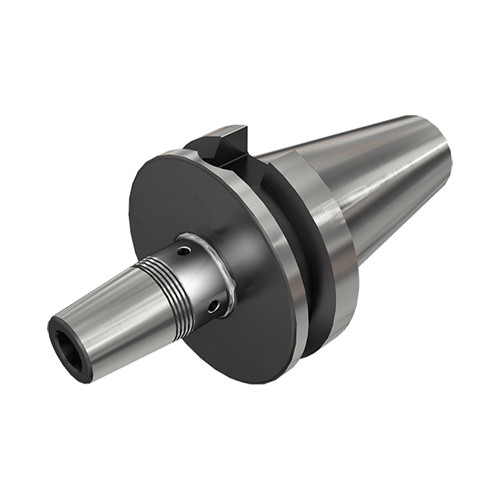

| 系列描述 | 带BT MAS-403 端面接触AD型锥柄的热缩刀柄。可用于整硬刀具和高速钢刀具。 | 系列名称 | BT-FC-SRKIN |
| 备注 | 仅对SRKIN夹持部位使用装置感应加热 应用细节，点击“更多信息” | 品牌 | Iscar |
| COO | Israel |
Shipping Info
包装重量
4.0720
名字
Shrink Fit Holders
系列名称
BT-FC-SRKIN
品牌
Iscar
