HSK A100 SRKIN5/8X4.00CX
带HSK DIN9893标准A型锥柄的热缩刀柄，沿刀柄夹持孔带冷却液喷射槽。适用于柄径公差为h6的硬质合金、高速钢、钢制刀具。
Price: Log in For Price

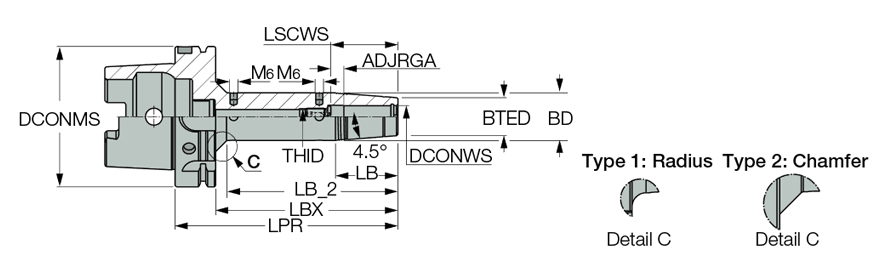

产品规格
| Connection Diameter Machine Side (DCONMS) | 3.937″ | Protruding Length (LPR) | 4″ |
| Connection Diameter Workpiece Side (DCONWS) | 5/8″ | Body Length Maximum (LBX) | 2.858″ |
| Body Length (LB) | 1-3/4″ | Clamping Length Workpiece Side (LSCWS) | 1.882″ |
| Body Length_2 (LB_2) | 2.543″ | 测量方式 | Inch |
| Body Diameter (BD) | 1.34″ | 刀体材质 | Steel |
| Body Taper End Diameter (BTED) | 1.063″ | 单位 | I |
产品特性
| 系列描述 | 带HSK DIN9893标准A型锥柄的热缩刀柄，沿刀柄夹持孔带冷却液喷射槽。适用于柄径公差为h6的硬质合金、高速钢、钢制刀具。 | 系列名称 | HSK A-SRKIN-CX |
| 备注 | A cooling tube must be used with all coolant through HSK spindles (to be ordered separately) Use only inductive heating device for SRKIN holders For solid carbide, HSS and steel tools. For shank dimensions and shrink units information, Click on More Info ISCAR cannot guarantee an unbalance value less than 1 gr x mm Preset screw CX allows supply of coolant via JET groove - do not remove | 品牌 | Iscar |
| COO | Israel |
Shipping Info
包装重量
5.4785
名字
Shrink Fit Holders
系列名称
HSK A-SRKIN-CX
品牌
Iscar
