C6 SRKIN 5/16X3.150 CX
带CAMFIX (ISO 26623-1) 锥柄和冷却液高压喷嘴的热缩刀柄。适用于硬质合金和高速钢柄部精度为h6的 刀具。
Price: Log in For Price
产品规格

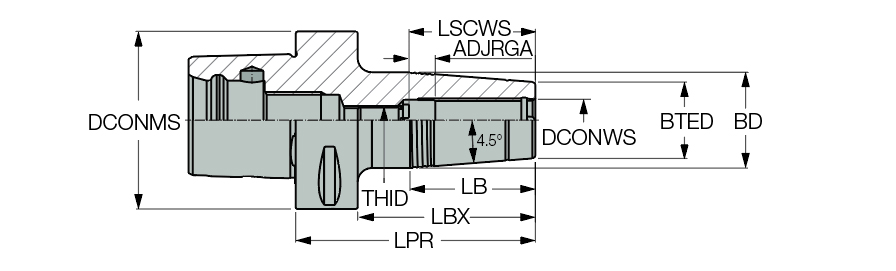

| Connection Diameter Machine Side (DCONMS) | 2.48″ | Protruding Length (LPR) | 3.15″ |
| Connection Diameter Workpiece Side (DCONWS) | 0.312″ | Body Length Maximum (LBX) | 2.284″ |
| Shank Size (SS) | 63 | Clamping Length Workpiece Side (LSCWS) | 1.338″ |
| Body Length (LB) | 1-1/2″ | 测量方式 | Inch |
| Body Diameter (BD) | 1.063″ | 刀体材质 | Steel |
| Body Taper End Diameter (BTED) | 0.827″ | 单位 | I |
产品特性
| 系列描述 | 带CAMFIX (ISO 26623-1) 锥柄和冷却液高压喷嘴的热缩刀柄。适用于硬质合金和高速钢柄部精度为h6的 刀具。 | 系列名称 | C#-SRKIN-CX |
| 备注 | Use only inductive heating device for SRKIN holders ISCAR cannot guarantee an unbalance value less than 1 gr x mm For shrink units information, Click on More Info Preset screw CX allows supply of coolant via JET groove - do not remove | 品牌 | Iscar |
| COO | Israel |
Shipping Info
包装重量
2.2708
名字
Shrink Fit Holders
系列名称
C#-SRKIN-CX
品牌
Iscar
