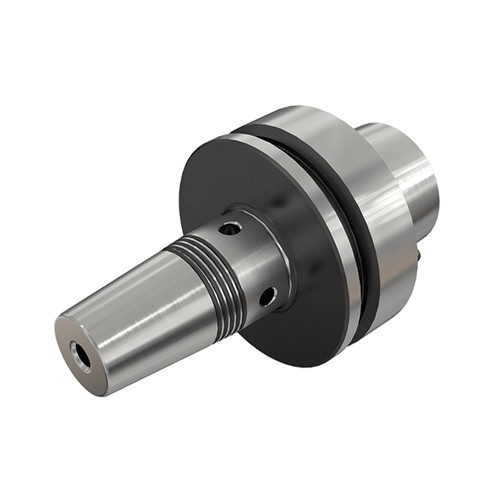

HSK FM80 SRKIN5/8X3.25
Thermal shrink chucks with HSK FM shanks, for MAKINO's machine models MAG Series A. These HSK shanks feature two orientation pins for high speed machining of aluminum.
Price: Log in For Price
产品规格

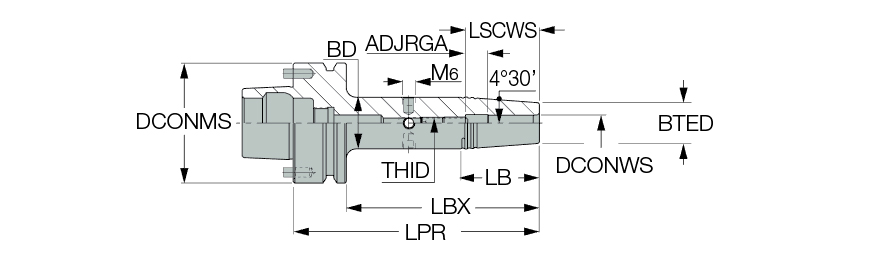

| Connection Diameter Machine Side (DCONMS) | 3.15″ | 测量方式 | Inch |
| Connection Diameter Workpiece Side (DCONWS) | 5/8″ | Tool Type | HSK |
| Shank Size (SS) | 80 | 刀体材质 | Steel |
| Body Length (LB) | 1.752″ | Connection Code Machine Side (CCMS) | HSK |
| Protruding Length (LPR) | 3-1/4″ | 单位 | I |
| Overall Length (OAL) | 4.512″ |
产品特性
| 系列描述 | Thermal shrink chucks with HSK FM shanks, for MAKINO's machine models MAG Series A. These HSK shanks feature two orientation pins for high speed machining of aluminum. | 系列名称 | HSK FM-SRKIN |
| 备注 | A cooling tube must be used with all coolant through HSK spindles (to be ordered separately) For solid carbide, HSS and steel tools Use only inductive heating device for SRKIN holders The orientation pins can be removed, turning the toolholder into a standard HSK F 63 type | 品牌 | Iscar |
| COO | Israel |
Shipping Info
包装重量
3.1173
名字
Shrink Fit Holders
系列名称
HSK FM-SRKIN
品牌
Iscar
