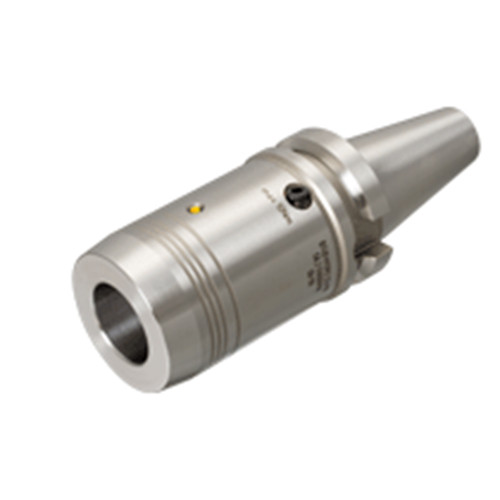

BT50 HYDRO 6X110
Hydraulic chucks with MASBT form AD shanks. for Semi-Finish and finish applications
Price: Log in For Price
产品规格

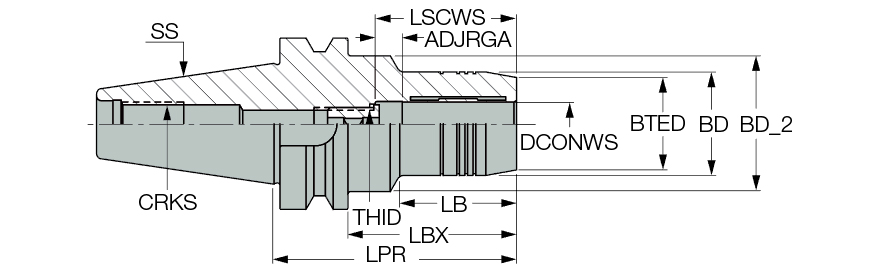

| Body Length (LB) | 43 mm | Tool Type | BT |
| Connection Diameter Workpiece Side (DCONWS) | 6 mm | 测量方式 | Metric |
| Body Diameter (BD) | 26 mm | 刀体材质 | Steel |
| Protruding Length (LPR) | 110 mm | Connection Code Machine Side (CCMS) | BT |
| Shank Size (SS) | 50 | 单位 | M |
产品特性
| 系列描述 | Hydraulic chucks with MASBT form AD shanks. for Semi-Finish and finish applications | 系列名称 | BT-HYDRO |
| 备注 | Chucking forces will be reduced by 25% if reduction sleeves are used. Note: Reduction sleeves are available for 12, 20, 25 and 32 mm bore diameters (order separately). The coolant passages in the B type flange are blocked with screws which can be removed when required. | 品牌 | Iscar |
| COO | Germany |
Shipping Info
包装重量
4.7740
名字
Hydraulic Holders
系列名称
BT-HYDRO
品牌
Iscar
