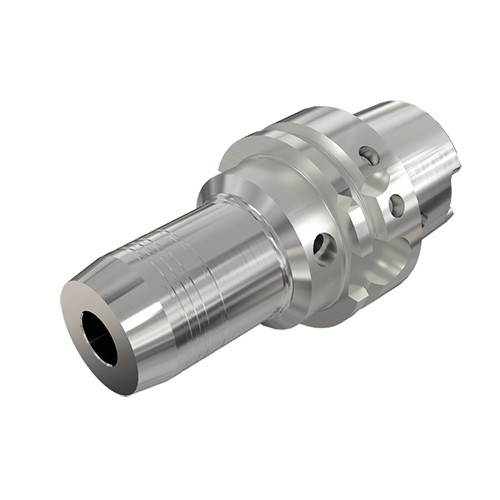

HSK A100 HYDRO 25X115
Hydraulic chucks with HSK DIN69893 form A tapered shanks. for Semi-Finish and finish applications
Price: Log in For Price
产品规格
| Body Length (LB) | 51 mm | Tool Type | HSK |
| Connection Diameter Workpiece Side (DCONWS) | 25 mm | 测量方式 | Metric |
| Body Diameter (BD) | 50 mm | 刀体材质 | Steel |
| Protruding Length (LPR) | 115 mm | Connection Code Machine Side (CCMS) | HSK |
| Shank Size (SS) | 100 | 单位 | M |
产品特性
| 系列描述 | Hydraulic chucks with HSK DIN69893 form A tapered shanks. for Semi-Finish and finish applications | 系列名称 | HSK A-HYDRO |
| 备注 | Chucking forces will be reduced by 25% if reduction sleeves are used. A cooling tube must be used with coolant through HSK spindles (order separately). Reduction sleeves are available for 12, 20, 25 and 32 mm bore diameters (must be ordered separately). | 品牌 | Iscar |
| COO | Germany |
Shipping Info
包装重量
3.4640
名字
Hydraulic Holders
系列名称
HSK A-HYDRO
品牌
Iscar
