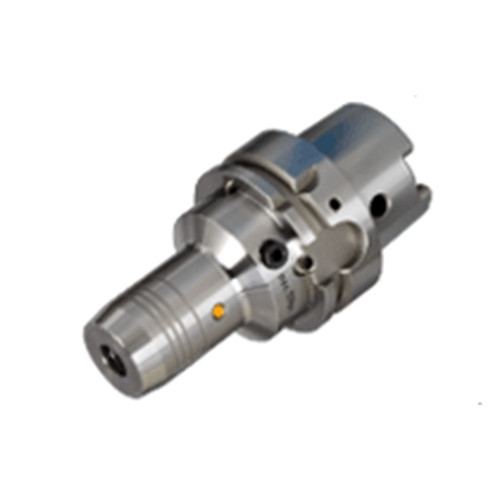

HSK A100 HYDRO 3/4X4.134
Hydraulic chucks with HSK DIN69893 form A tapered shanks.
Price: Log in For Price
产品规格
| Body Length (LB) | 2.126″ | Tool Type | HSK |
| Connection Diameter Workpiece Side (DCONWS) | 3/4″ | 测量方式 | Inch |
| Body Diameter (BD) | 1.654″ | 刀体材质 | Steel |
| Protruding Length (LPR) | 4.134″ | Connection Code Machine Side (CCMS) | HSK |
| Shank Size (SS) | 100 | 单位 | I |
产品特性
| 系列描述 | Hydraulic chucks with HSK DIN69893 form A tapered shanks. | 系列名称 | HSK A-HYDRO |
| 备注 | Chucking forces will significantly decrease if reduction sleeves are used (order separately). A cooling tube must be used with coolant through HSK spindles (order separately). Clamping wrench (wrench HYDRO HEX4) and test bar to be7ordered separately. Reduction sleeves are available for .75, and 1.25 bore diameters (must be ordered separately). | 品牌 | Iscar |
| COO | Germany |
Shipping Info
包装重量
6.7373
名字
Hydraulic Holders
系列名称
HSK A-HYDRO
品牌
Iscar
