产品规格

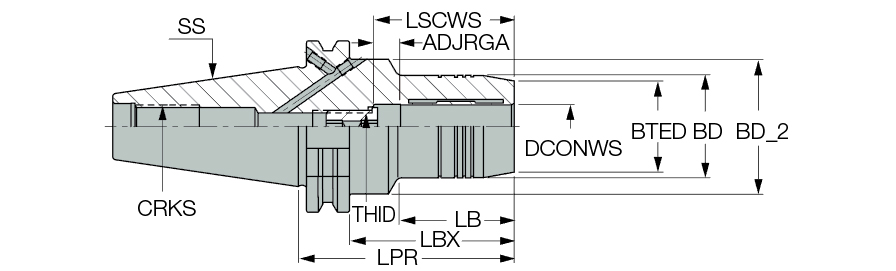

| Body Length (LB) | 1.574″ | Tool Type | DIN 69871 |
| Connection Diameter Workpiece Side (DCONWS) | 5/8″ | 测量方式 | Inch |
| Body Diameter (BD) | 1.496″ | 刀体材质 | Steel |
| Protruding Length (LPR) | 3.149″ | Connection Code Machine Side (CCMS) | CAT |
| Shank Size (SS) | 50 | 单位 | I |
产品特性
| 系列描述 | Caterpillar ADB型带ISO 3937内冷却通孔液压刀柄 | 系列名称 | CAT-HYDRO |
| 备注 | Chucking forces will be reduced by 25% if reduction sleeves are used. Note: Reduction sleeves are available for 3/4 and 1-1/4 bore diameters (order separately). The coolant passages in the B type flange are blocked withscrews which can be removed when required. Clamping wrench (wrench HYDRO HEX 4) and test bar to be ordered separately. | 品牌 | Iscar |
| COO | Germany |
Shipping Info
包装重量
7.6302
名字

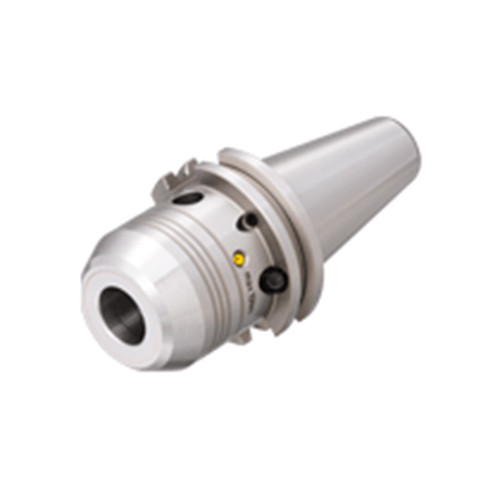

Hydraulic Holders
系列名称
CAT-HYDRO
品牌
Iscar
