产品规格
| Shank Size (SS) | 50 | Connection Diameter Minimum Workpiece Side (DCONNWS) | 0.12″ |
| Connection Size (CSI) | ER40 | Connection Diameter Maximum Workpiece Side (DCONXWS) | 1.025″ |
| Body Diameter (BD) | 1.969″ | 测量方式 | Inch |
| Protruding Length (LPR) | 1.124″ | 刀体材质 | Steel |
| Connection Diameter Machine Side (DCONMS) | 50″ | Connection Code Machine Side (CCMS) | CAT |
| Tool Type | DIN 69871 | 单位 | I |
产品特性
| 系列描述 | Caterpillar AD型短式SHORTIN DIN 6499 ER弹簧夹头刀柄 | 系列名称 | CAT-ER-SHORT |

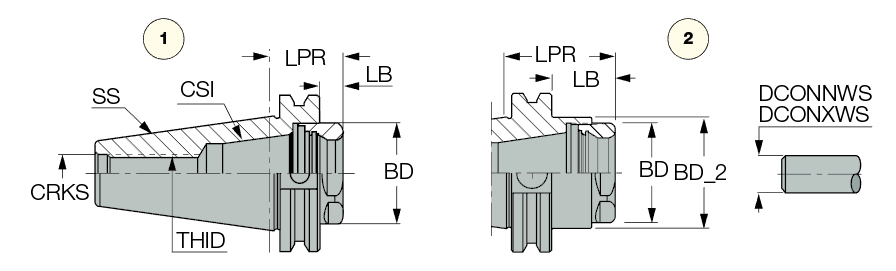

| 备注 | Toolholders according to Fig 1 can be used only on vertical machines with an umbrella type ATC (cannot be used with arm type ATC). | 品牌 | Iscar |
| COO | Turkey |
Shipping Info
包装重量
5.2999
名字
弹簧筒夹夹头
系列名称
CAT-ER-SHORT
品牌
Iscar
