产品规格

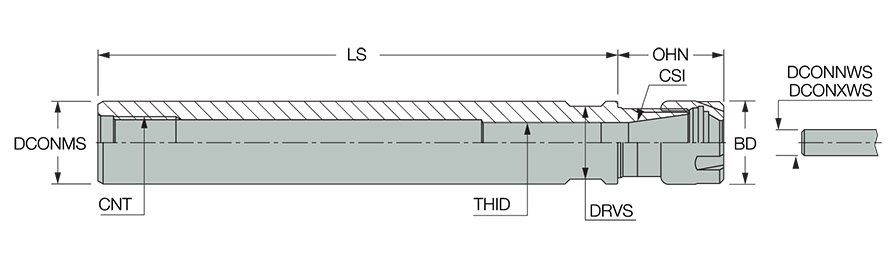

| Shank Size (SS) | 1/2 | Connection Diameter Minimum Workpiece Side (DCONNWS) | 0.022″ |
| Connection Size (CSI) | ER11 | Connection Diameter Maximum Workpiece Side (DCONXWS) | 0.278″ |
| Body Diameter (BD) | 0.63″ | 测量方式 | Inch |
| Protruding Length (LPR) | 0.734″ | Drive Size (DRVS) | 0.433″ |
| Connection Diameter Machine Side (DCONMS) | 1/2″ | 刀体材质 | Steel |
| Shank Length (LS) | 4″ | 单位 | I |
| Tool Type | Cylindrical Shanks |
产品特性

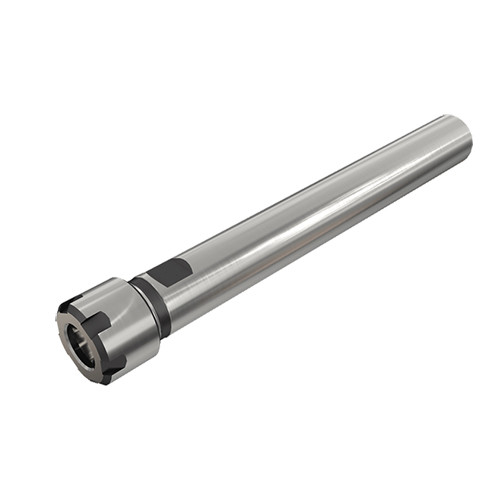

| 系列描述 | 带圆柱柄的DIN6499 迷你ER刀柄夹头 | 系列名称 | ST-ER-M (mini) |
| COO | Germany | 品牌 | Iscar |
Shipping Info
包装重量
0.2116
名字
弹簧筒夹夹头
系列名称
ST-ER-M (mini)
品牌
Iscar
