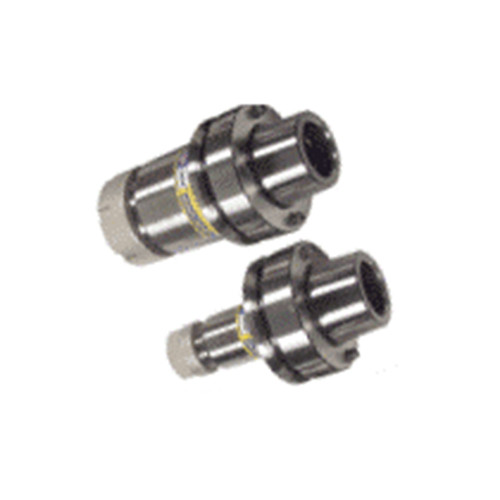

HSK FM63 ER40X100
ER collet chuck with HSK FM shanks, for MAKINO's machine models MAG Series A. These HSK shanks feature two orientation pins for high speed machining of aluminum.
Price: Log in For Price
产品规格
| Shank Size (SS) | 63 | Connection Diameter Minimum Workpiece Side (DCONNWS) | 3 mm |
| Connection Size (CSI) | ER40 | Connection Diameter Maximum Workpiece Side (DCONXWS) | 26 mm |
| Body Diameter (BD) | 63 mm | 测量方式 | Metric |
| Protruding Length (LPR) | 100 mm | 刀体材质 | Steel |
| Connection Diameter Machine Side (DCONMS) | 63 mm | Connection Code Machine Side (CCMS) | HSK |
| Tool Type | HSK | 单位 | M |
产品特性
| 系列描述 | ER collet chuck with HSK FM shanks, for MAKINO's machine models MAG Series A. These HSK shanks feature two orientation pins for high speed machining of aluminum. | 系列名称 | HSK FM-ER |
| 备注 | Used on Makino machine models MAG The anti-slip pins can be removed, turning the toolholders into a standard HSK F63 type A cooling tube must be used with all coolant through HSK spindles (to be ordered separately) | 品牌 | Iscar |
| COO | Israel |
Shipping Info
包装重量
1.4910
名字
弹簧筒夹夹头
系列名称
HSK FM-ER
品牌
Iscar
