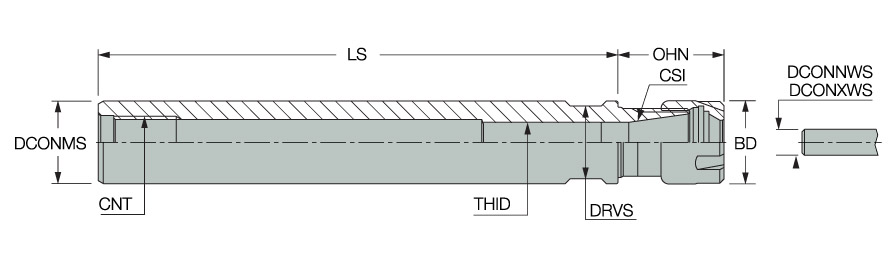

产品规格
| Shank Size (SS) | 12 | Connection Diameter Minimum Workpiece Side (DCONNWS) | 0.5 mm |
| Connection Size (CSI) | ER11 | Connection Diameter Maximum Workpiece Side (DCONXWS) | 7 mm |
| Body Diameter (BD) | 16 mm | 测量方式 | Metric |
| Protruding Length (LPR) | 61.5 mm | Drive Size (DRVS) | 11 mm |
| Connection Diameter Machine Side (DCONMS) | 12 mm | 刀体材质 | Steel |
| Shank Length (LS) | 80 mm | 单位 | M |
| Tool Type | Cylindrical Shanks |
产品特性
| 系列描述 | 带圆柱柄的DIN6499 迷你ER刀柄夹头 | 系列名称 | ST-ER-M (mini) |
| COO | Germany | 品牌 | Iscar |
Shipping Info
包装重量
0.0740
名字
弹簧筒夹夹头
系列名称
ST-ER-M (mini)
品牌
Iscar
