产品规格

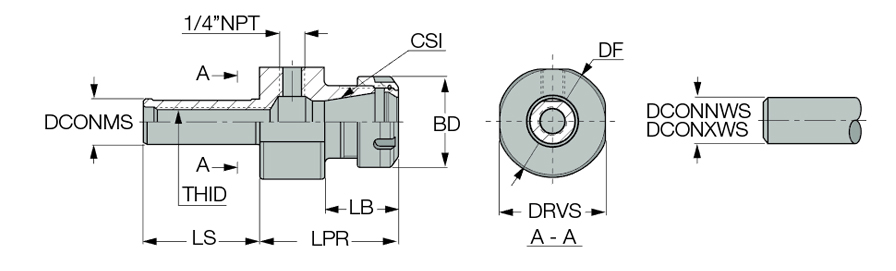

| Shank Size (SS) | 32 | Connection Diameter Minimum Workpiece Side (DCONNWS) | 2 mm |
| Connection Size (CSI) | ER32 | Connection Diameter Maximum Workpiece Side (DCONXWS) | 20 mm |
| Body Diameter (BD) | 50 mm | 测量方式 | Metric |
| Protruding Length (LPR) | 77 mm | Drive Size (DRVS) | 59 mm |
| Shank Length (LS) | 65 mm | 刀体材质 | Steel |
| Tool Type | Cylindrical Shanks | 单位 | M |
产品特性
| 系列描述 | 带削平圆柱柄的内冷式DIN 6499刀柄夹头 | 系列名称 | ST-ER-S |
| COO | Israel | 品牌 | Iscar |
Shipping Info
包装重量
1.3450
名字
弹簧筒夹夹头
系列名称
ST-ER-S
品牌
Iscar
