产品规格

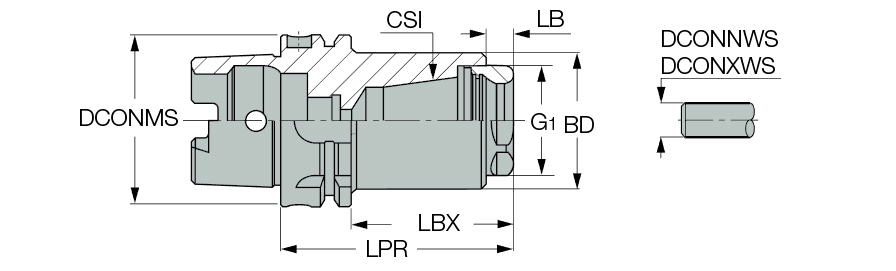

| Shank Size (SS) | 100 | Connection Diameter Minimum Workpiece Side (DCONNWS) | 2 mm |
| Connection Size (CSI) | ER32 | Connection Diameter Maximum Workpiece Side (DCONXWS) | 20 mm |
| Body Diameter (BD) | 50 mm | 测量方式 | Metric |
| Protruding Length (LPR) | 89.5 mm | 刀体材质 | Steel |
| Connection Diameter Machine Side (DCONMS) | 100 mm | Connection Code Machine Side (CCMS) | HSK |
| Tool Type | HSK | 单位 | M |
产品特性

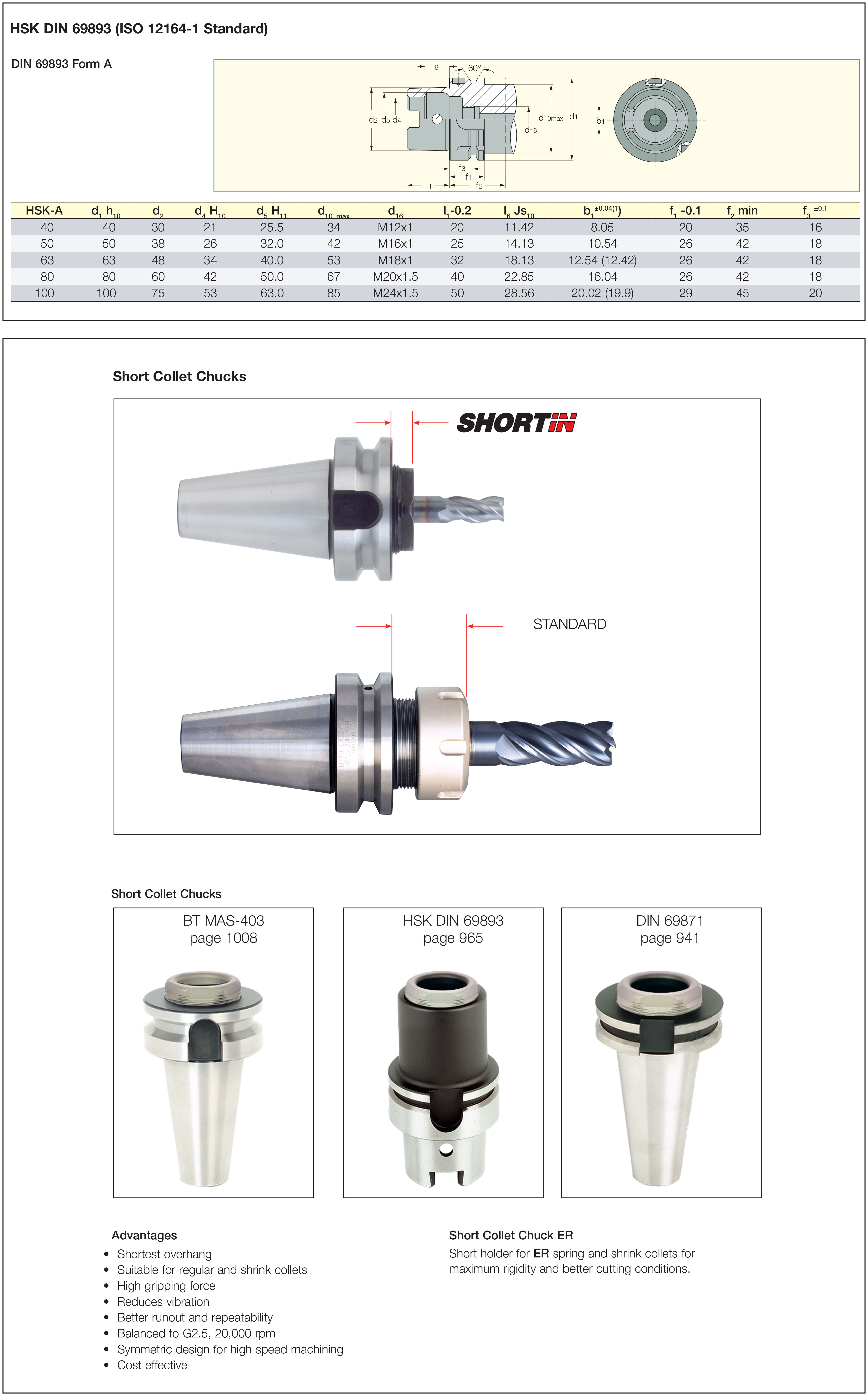

| 系列描述 | HSK A ER筒夹刀柄，短型 | 系列名称 | HSK A-ER-SHORT |
| 备注 | HSK主轴内冷必需使用内冷管（需单独订购）；关于柄部尺寸请点击“更多信息” | 品牌 | Iscar |
| COO | Italy |
Shipping Info
包装重量
2.7230
名字
弹簧筒夹夹头
系列名称
HSK A-ER-SHORT
品牌
Iscar
