BT50 ER40X200 B
DIN6499 ER collet chucks with BT MAS-403 ADB tapered shanks.
Price: Log in For Price
产品规格

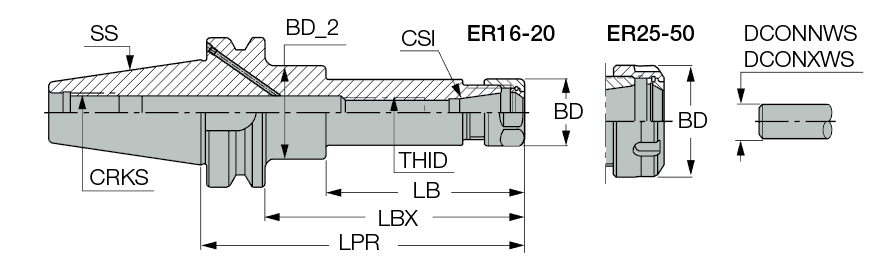

| Shank Size (SS) | 50 | Connection Diameter Maximum Workpiece Side (DCONXWS) | 26 mm |
| Connection Size (CSI) | ER40 | 测量方式 | Metric |
| Body Diameter (BD) | 63 mm | 刀体材质 | Steel |
| Protruding Length (LPR) | 200 mm | Connection Code Machine Side (CCMS) | BT |
| Tool Type | BT | 单位 | M |
| Connection Diameter Minimum Workpiece Side (DCONNWS) | 3 mm |
产品特性
| 系列描述 | DIN6499 ER collet chucks with BT MAS-403 ADB tapered shanks. | 系列名称 | BT-ER |
| 备注 | B是带内冷设计的型号 | 品牌 | Iscar |
| COO | Italy |
Shipping Info
包装重量
6.6690
名字
弹簧筒夹夹头
系列名称
BT-ER
品牌
Iscar
