GTI BT50 ER32
DIN 6499 ER tapping attachments with BT MAS-403 A tapered shanks.
Price: Log in For Price
产品规格

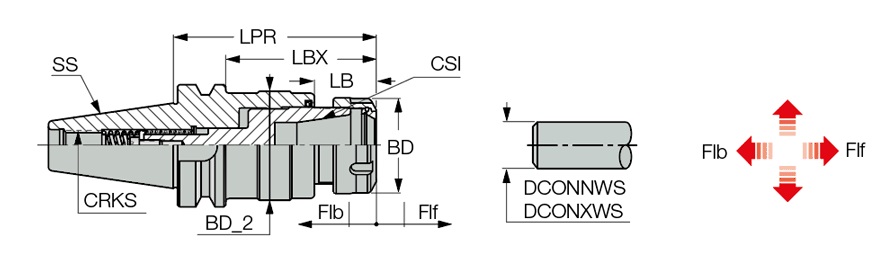

| Shank Size (SS) | 50 | Connection Diameter Minimum Workpiece Side (DCONNWS) | 2 mm |
| Connection Size (CSI) | ER32 | Connection Diameter Maximum Workpiece Side (DCONXWS) | 20 mm |
| Body Diameter (BD) | 50 mm | 测量方式 | Metric |
| Protruding Length (LPR) | 114.2 mm | 刀体材质 | Steel |
| Tool Type | BT | 单位 | M |
产品特性
| 系列描述 | DIN 6499 ER tapping attachments with BT MAS-403 A tapered shanks. | 系列名称 | GTI BT-ER (tapping) |
| 备注 | 刀柄详情，点击“更多信息” | 品牌 | Iscar |
| COO | Israel |
Shipping Info
包装重量
4.7040
名字
弹簧筒夹夹头
系列名称
GTI BT-ER (tapping)
品牌
Iscar
