产品规格

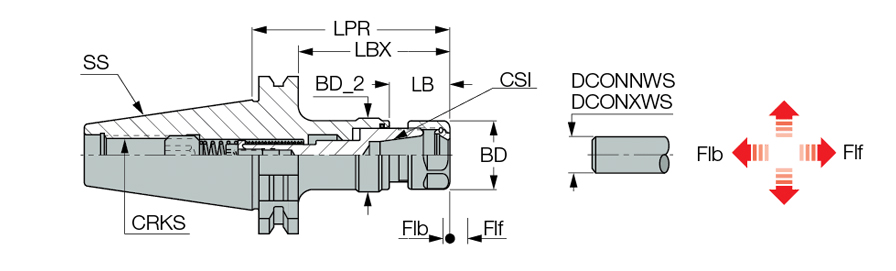

| Shank Size (SS) | 40 | Connection Diameter Minimum Workpiece Side (DCONNWS) | 3 mm |
| Connection Size (CSI) | ER40 | Connection Diameter Maximum Workpiece Side (DCONXWS) | 26 mm |
| Body Diameter (BD) | 63 mm | 测量方式 | Metric |
| Protruding Length (LPR) | 129.4 mm | 刀体材质 | Steel |
| Tool Type | DIN 69871 | 单位 | M |
产品特性
| 系列描述 | DIN 69871 A型号锥柄的DIN6499 ER攻丝刀柄 | 系列名称 | GTI DIN69871-ER (tapping) |
| 备注 | ae max for regular inserts, up to 0.15xD, ae max for -CS and -FW (chip splitting) inserts, up to 0.20xD For adaptation options, click on More Info | 品牌 | Iscar |
| COO | Israel |
Shipping Info
包装重量
2.4020
名字
弹簧筒夹夹头
系列名称
GTI DIN69871-ER (tapping)
品牌
Iscar
