产品规格

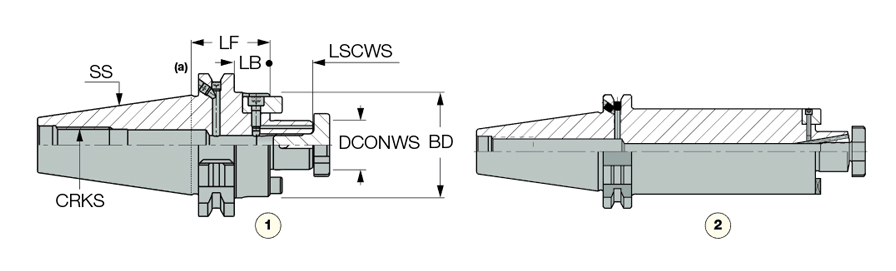

| Connection Diameter Machine Side (DCONMS) | 50 mm | Clamping Length Workpiece Side (LSCWS) | 24 mm |
| Connection Diameter Workpiece Side (DCONWS) | 32 mm | Tool Type | DIN 69871 |
| Shank Size (SS) | 50 | 测量方式 | Metric |
| Functional Length (LF) | 100 mm | 刀体材质 | Steel |
| Body Diameter (BD) | 78 mm | Connection Code Machine Side (CCMS) | DIN69871 |
| Coolant Supply Property (CSP) | Coolant Thru | 单位 | M |
产品特性
| 系列描述 | DIN 69871 ADB型带内冷却通孔ISO 3937套式铣刀柄 | 系列名称 | DIN69871-SEM-C |
| 备注 | (a) ‘B’型法兰内冷式刀柄的冷却通道由堵头螺钉堵塞，可根据需要采用2mm的六角扳手移除堵头螺钉 | 品牌 | Iscar |
| COO | Italy |
Shipping Info
包装重量
5.8110
名字

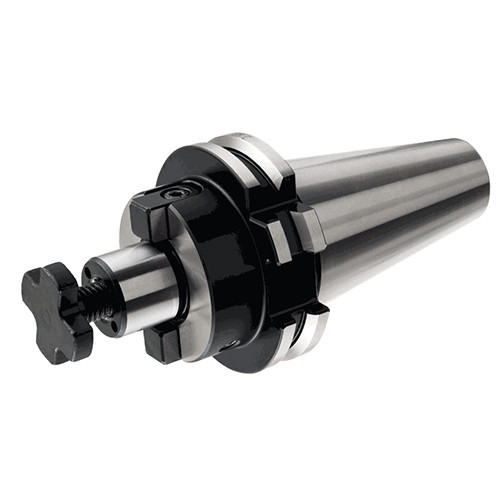

Shell Mill Holders
系列名称
DIN69871-SEM-C
品牌
Iscar
