产品规格

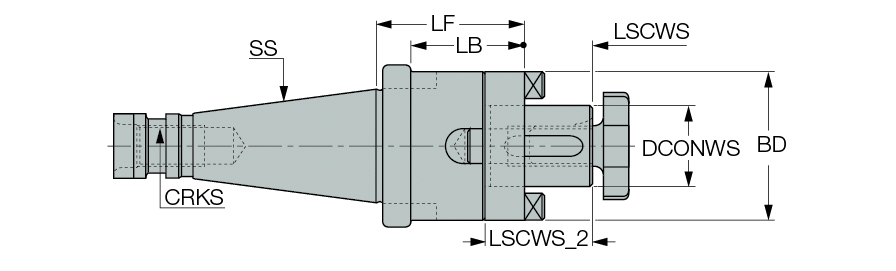

| Connection Diameter Workpiece Side (DCONWS) | 40 mm | Tool Type | DIN 2080刀柄 |
| Shank Size (SS) | 40 | 测量方式 | Metric |
| Functional Length (LF) | 52 mm | 刀体材质 | Steel |
| Body Diameter (BD) | 70 mm | 单位 | M |
| Clamping Length Workpiece Side (LSCWS) | 27 mm |
产品特性
| 系列描述 | DIN 2080 A型DIN 6358 COMBI套式组合铣刀柄 | 系列名称 | DIN2080-SEMC |
| 备注 | 对于带内冷却通孔的刀柄，相关COOLANT SET冷却套装组件需通过附件渠道订购（仅适配于相关刀具） | 品牌 | Iscar |
| COO | Turkey |
Shipping Info
包装重量
2.4950
名字
Shell Mill Holders
系列名称
DIN2080-SEMC
品牌
Iscar
