产品规格

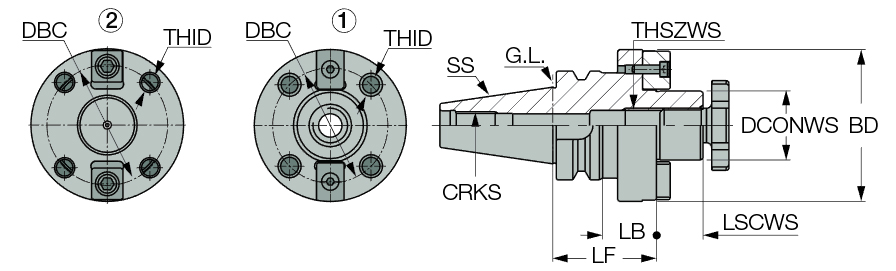

| Connection Diameter Machine Side (DCONMS) | 50 mm | Tool Type | BT |
| Connection Diameter Workpiece Side (DCONWS) | 60 mm | 测量方式 | Metric |
| Shank Size (SS) | 50 | 刀体材质 | Steel |
| Functional Length (LF) | 88 mm | Connection Code Machine Side (CCMS) | BT |
| Body Diameter (BD) | 128 mm | 单位 | M |
| Clamping Length Workpiece Side (LSCWS) | 38 mm |
产品特性
| 系列描述 | 带BT MAS-403 A/AD型锥柄的DIN6357套式铣刀刀柄 | 系列名称 | BT-FM |
| 备注 | 不包含锁紧螺钉 | 品牌 | Iscar |
| COO | Italy |
Shipping Info
包装重量
9.7370
名字
Shell Mill Holders
系列名称
BT-FM
品牌
Iscar
