SMH MB40-16
Shell mill holders with the MB modular boring connection system.
Price: Log in For Price
产品规格

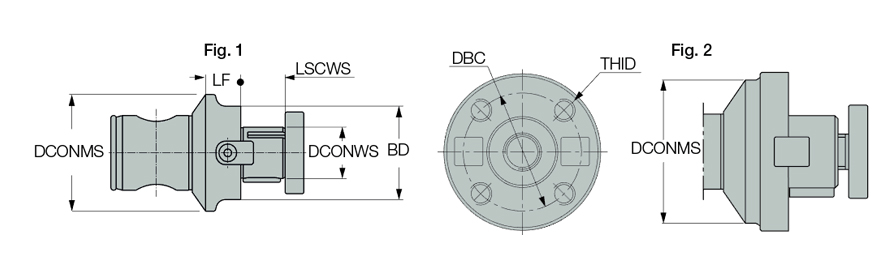

| Connection Diameter Machine Side (DCONMS) | 40 mm | Clamping Length Workpiece Side (LSCWS) | 17 mm |
| Connection Diameter Workpiece Side (DCONWS) | 16 mm | Tool Type | MB General Tools Holders |
| Shank Size (SS) | MB40 | 测量方式 | Metric |
| Functional Length (LF) | 15 mm | 刀体材质 | Steel |
| Body Diameter (BD) | 32 mm | 单位 | M |
产品特性
| 系列描述 | Shell mill holders with the MB modular boring connection system. | 系列名称 | SMH MB |
| 备注 | 安装锯片铣刀时，去掉驱动键，使用间隔环 确认整个装配刀体的重量不超过机床的抓刀重量 | 品牌 | Iscar |
| COO | Italy |
Shipping Info
包装重量
0.3200
名字
Shell Mill Holders
系列名称
SMH MB
品牌
Iscar
