产品规格

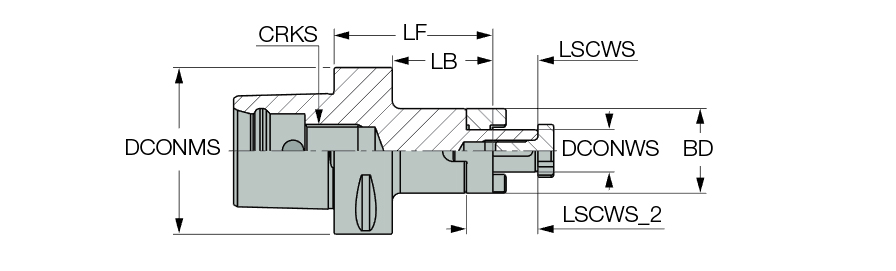

| Connection Diameter Machine Side (DCONMS) | 63 mm | Clamping Length Workpiece Side (LSCWS) | 17 mm |
| Connection Diameter Workpiece Side (DCONWS) | 16 mm | Tool Type | ISO 26623-1 (CAMFIX, CAPTO) |
| Shank Size (SS) | 63 | 测量方式 | Metric |
| Functional Length (LF) | 100 mm | 刀体材质 | Steel |
| Body Diameter (BD) | 32 mm | 单位 | M |
产品特性

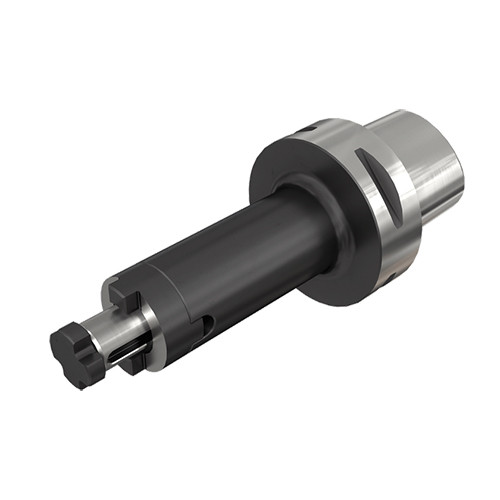

| 系列描述 | CAMFIX (ISO 26623-1标准)型COMBI套式铣刀（DIN 6358标准）快换刀柄 | 系列名称 | C#-SEMC |
| 备注 | 对于带内冷却通孔的刀柄，相关COOLANT SET冷却套装组件需通过附件渠道订购（仅适配于相关刀具） | 品牌 | Iscar |
| COO | Israel |
Shipping Info
包装重量
1.3420
名字
Shell Mill Holders
系列名称
C#-SEMC
品牌
Iscar
