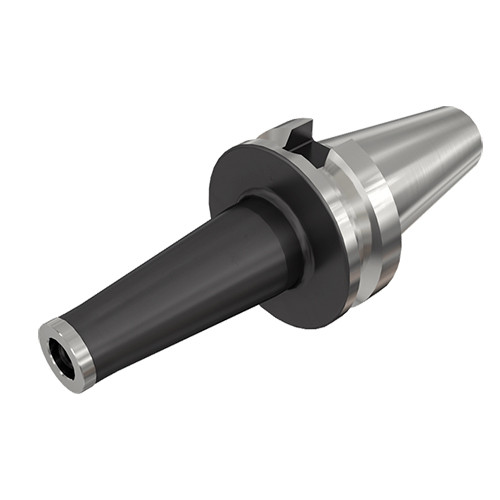

BT40 ODP12X106
FLEX-FIT threaded adaptation with integral BT MAS-403 tapered shanks (ADB type).
Price: Log in For Price
产品规格

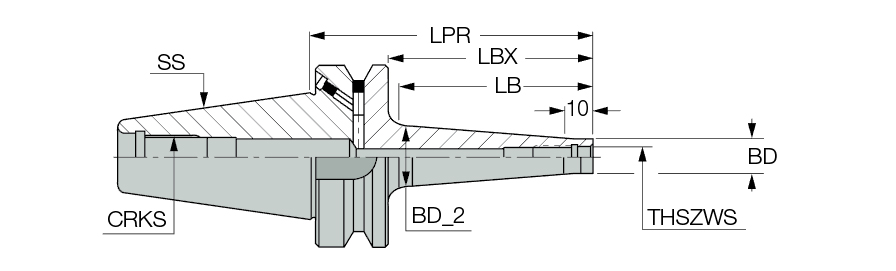

| Shank Size (SS) | 40 | Connection Retention Knob Thread Size (CRKS) | M16 |
| Protruding Length (LPR) | 106 mm | Tool Type | BT |
| Body Length (LB) | 70 mm | 测量方式 | Metric |
| Body Diameter (BD) | 31 mm | 刀体材质 | Steel |
| Connection Diameter Machine Side (DCONMS) | 40 mm | Connection Code Machine Side (CCMS) | BT |
| Connection Thread Nominal Size Workpiece Side (THSZWS) | M12 | 单位 | M |
产品特性
| 系列描述 | FLEX-FIT threaded adaptation with integral BT MAS-403 tapered shanks (ADB type). | 系列名称 | BT-ODP (FLEX-FIT) |
| 备注 | For adaptation Click on More Info. The coolant passages in the B type flange are blocked with screws which can be removed when required. | 品牌 | Iscar |
| COO | Italy |
Shipping Info
包装重量
1.2830
名字
Drill Chucks & Adapters
系列名称
BT-ODP (FLEX-FIT)
品牌
Iscar
