产品规格

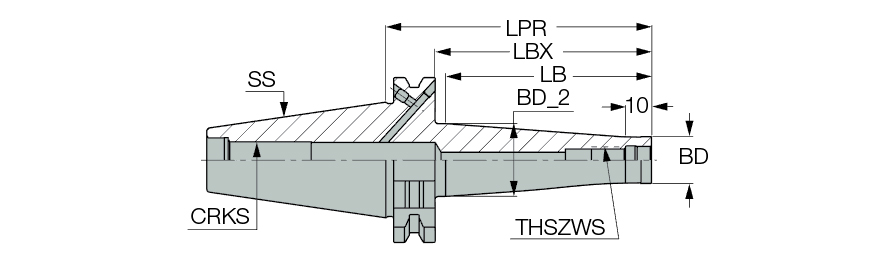

| Shank Size (SS) | 40 | Connection Retention Knob Thread Size (CRKS) | M16 |
| Protruding Length (LPR) | 98 mm | Tool Type | DIN 69871 |
| Body Length (LB) | 70 mm | 测量方式 | Metric |
| Body Diameter (BD) | 31 mm | 刀体材质 | Steel |
| Connection Diameter Machine Side (DCONMS) | 40 mm | Connection Code Machine Side (CCMS) | DIN69871 |
| Connection Thread Nominal Size Workpiece Side (THSZWS) | M12 | 单位 | M |
产品特性
| 系列描述 | 整体带DIN 69871 ADB型锥柄的 FLEXIFIT 螺纹接口刀杆 | 系列名称 | DIN69871-ODP |
| 备注 | For Adaptation, Click on More Info. | 品牌 | Iscar |
| COO | Italy |
Shipping Info
包装重量
1.1200
名字
Drill Chucks & Adapters
系列名称
DIN69871-ODP
品牌
Iscar
