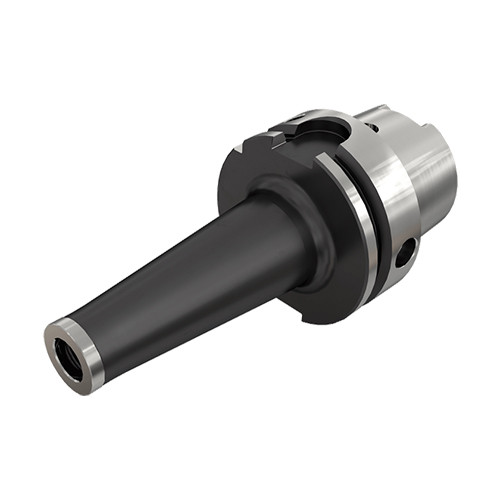

HSK A63 ODP12X109
FLEX-FIT Threaded Adaptation with HSK DIN 69893/A tapered shanks.
Price: Log in For Price
产品规格
| Shank Size (SS) | 63 | Tool Type | HSK |
| Protruding Length (LPR) | 109 mm | 测量方式 | Metric |
| Body Length (LB) | 75 mm | 刀体材质 | Steel |
| Body Diameter (BD) | 31 mm | Connection Code Machine Side (CCMS) | HSK |
| Connection Diameter Machine Side (DCONMS) | 63 mm | 单位 | M |
| Connection Thread Nominal Size Workpiece Side (THSZWS) | M12 |
产品特性
| 系列描述 | FLEX-FIT Threaded Adaptation with HSK DIN 69893/A tapered shanks. | 系列名称 | HSK A-ODP (FLEX-FIT) |
| 备注 | A cooling tube must be used with all coolant through HSK spindles (to be ordered separately). For shank dimensions, Click on More Info. | 品牌 | Iscar |
| COO | Italy |
Shipping Info
包装重量
1.0250
名字
Drill Chucks & Adapters
系列名称
HSK A-ODP (FLEX-FIT)
品牌
Iscar
