产品规格

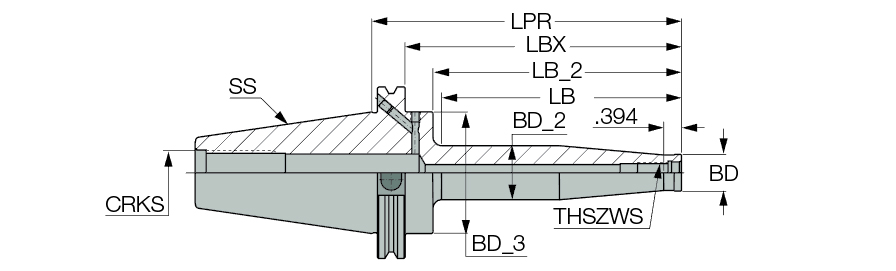

| Shank Size (SS) | 50 | Connection Retention Knob Thread Size (CRKS) | 1-8 |
| Protruding Length (LPR) | 3″ | Tool Type | DIN 69871 |
| Body Length (LB) | 1.405″ | 测量方式 | Inch |
| Body Diameter (BD) | 2.752″ | 刀体材质 | Steel |
| Connection Diameter Machine Side (DCONMS) | 50″ | Connection Code Machine Side (CCMS) | CAT |
| Connection Thread Nominal Size Workpiece Side (THSZWS) | M12 | 单位 | I |
产品特性

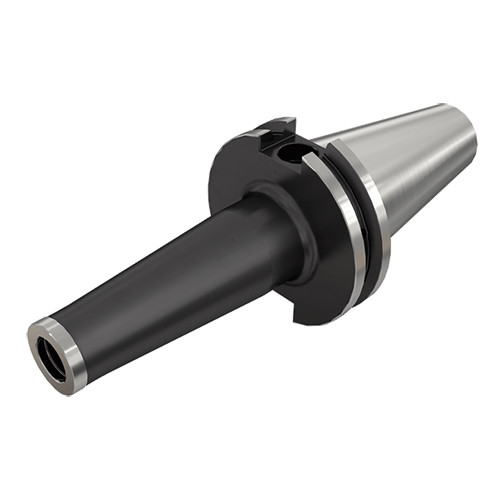

| 系列描述 | Caterpillar ADB型FLEXFIT模块螺纹连接刀柄 | 系列名称 | CAT-ODP |
| COO | Italy | 品牌 | Iscar |
Shipping Info
包装重量
7.0041
名字
Drill Chucks & Adapters
系列名称
CAT-ODP
品牌
Iscar
