产品规格

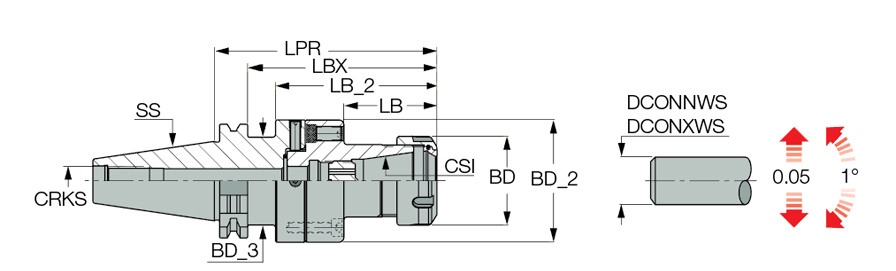

| Shank Size (SS) | 50 | Tool Type | DIN 69871 |
| Protruding Length (LPR) | 124.5 mm | 测量方式 | Metric |
| Body Length (LB) | 52.5 mm | 刀体材质 | Steel |
| Body Diameter (BD) | 50 mm | Connection Code Machine Side (CCMS) | DIN69871 |
| Connection Diameter Machine Side (DCONMS) | 50 mm | 单位 | M |
| Connection Retention Knob Thread Size (CRKS) | M24 |
产品特性

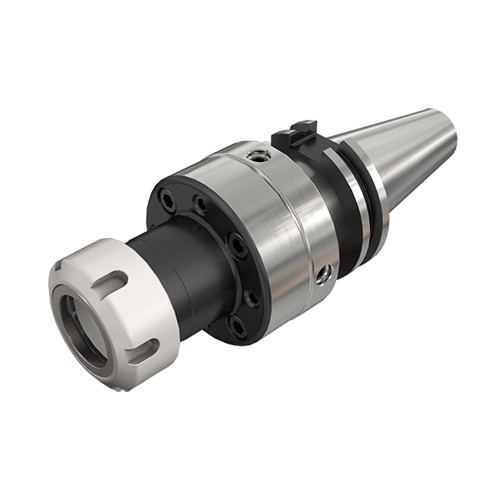

| 系列描述 | 带DIN69871 AD/B型锥柄的高精密定心可调式DIN6499 ER刀柄 | 系列名称 | ADJ DIN69871-ER |
| 备注 | 径向调节范围0.05mm，角度调节范围1°。 | 品牌 | Iscar |
| COO | Israel |
Shipping Info
包装重量
4.3840
名字
Drill Chucks & Adapters
系列名称
ADJ DIN69871-ER
品牌
Iscar
