产品规格

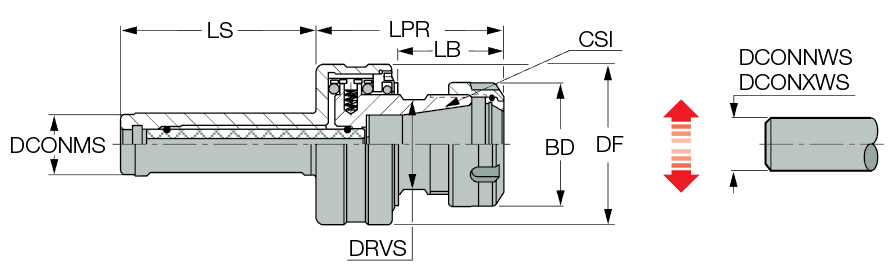

| Connection Size (CSI) | ER20 | Connection Diameter Maximum Workpiece Side (DCONXWS) | 0.514″ |
| Body Diameter (BD) | 1.339″ | Body Length (LB) | 1.358″ |
| Connection Diameter Machine Side (DCONMS) | 3/4″ | 测量方式 | Inch |
| Flange Diameter (DF) | 1.969″ | Shank Length (LS) | 2.559″ |
| Protruding Length (LPR) | 2.185″ | Overall Length (OAL) | 4.744″ |
| Tool Type | Cylindrical Shanks | 刀体材质 | Steel |
| Radial Float (RFI) | 0.02″ | 单位 | I |
| Connection Diameter Minimum Workpiece Side (DCONNWS) | 0.041″ |
产品特性

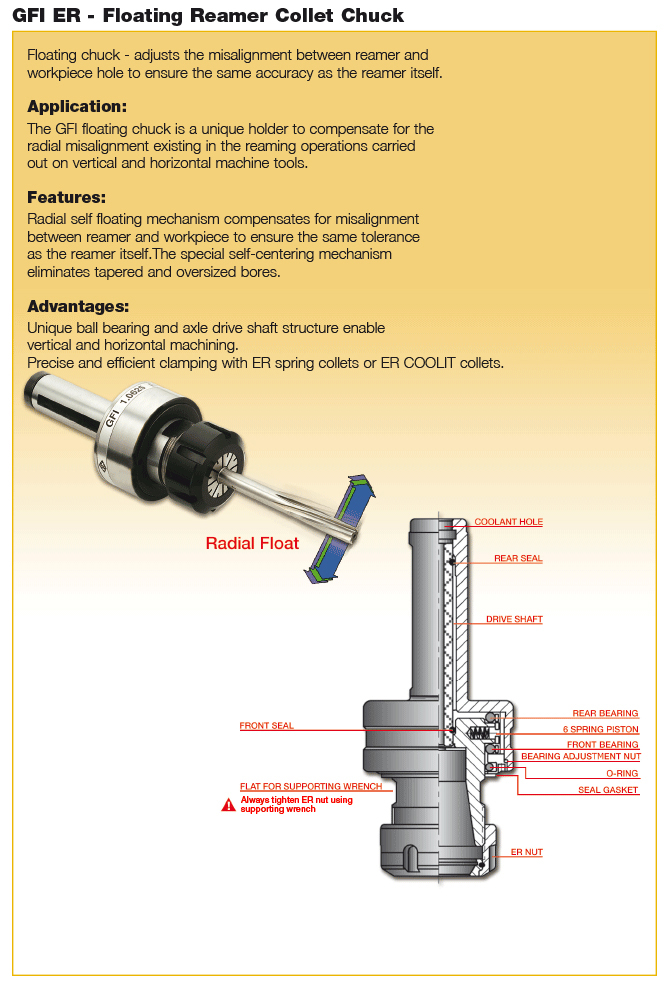

| 系列描述 | 带圆柱柄的浮动铰刀DIN6499标准筒夹 | 系列名称 | GFI ST-ER |
| 备注 | Maximum 2000 RPM! For Adaptation Click on More Info | 品牌 | Iscar |
| COO | Israel |
Shipping Info
包装重量
1.2324
名字

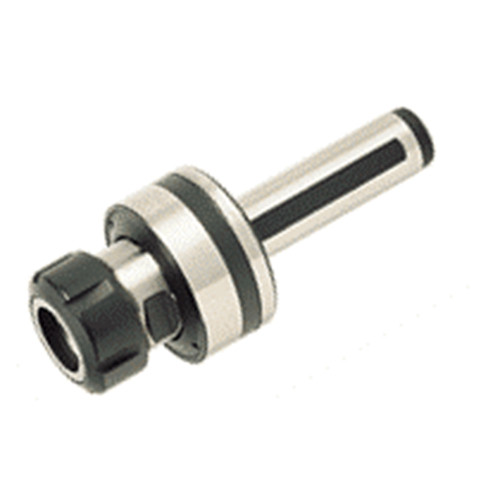

Reamer Holders
系列名称
GFI ST-ER
品牌
Iscar
