产品规格

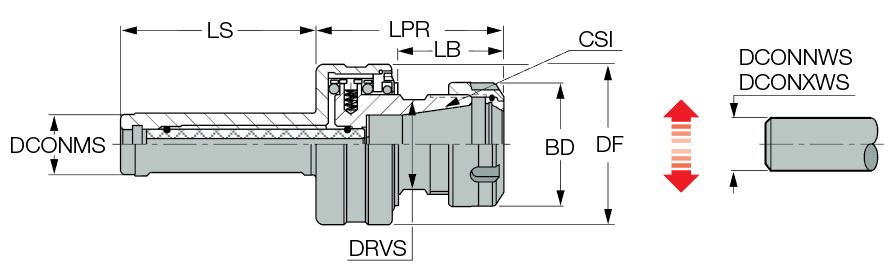

| Connection Size (CSI) | ER20 | Connection Diameter Maximum Workpiece Side (DCONXWS) | 13 mm |
| Body Diameter (BD) | 34 mm | Body Length (LB) | 31 mm |
| Connection Diameter Machine Side (DCONMS) | 20 mm | 测量方式 | Metric |
| Flange Diameter (DF) | 50 mm | Shank Length (LS) | 65 mm |
| Protruding Length (LPR) | 55.5 mm | Overall Length (OAL) | 120.5 mm |
| Tool Type | Cylindrical Shanks | 刀体材质 | Steel |
| Radial Float (RFI) | 0.5 mm | 单位 | M |
| Connection Diameter Minimum Workpiece Side (DCONNWS) | 1 mm |
产品特性

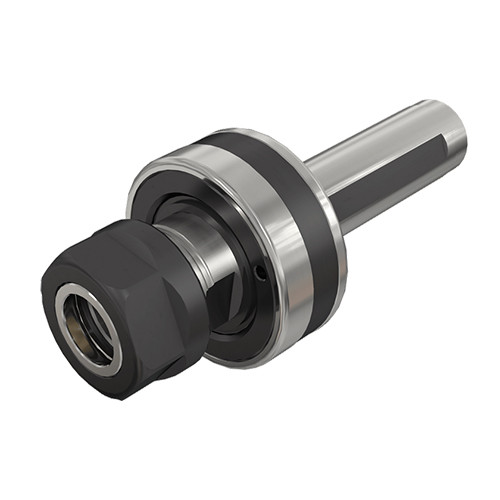

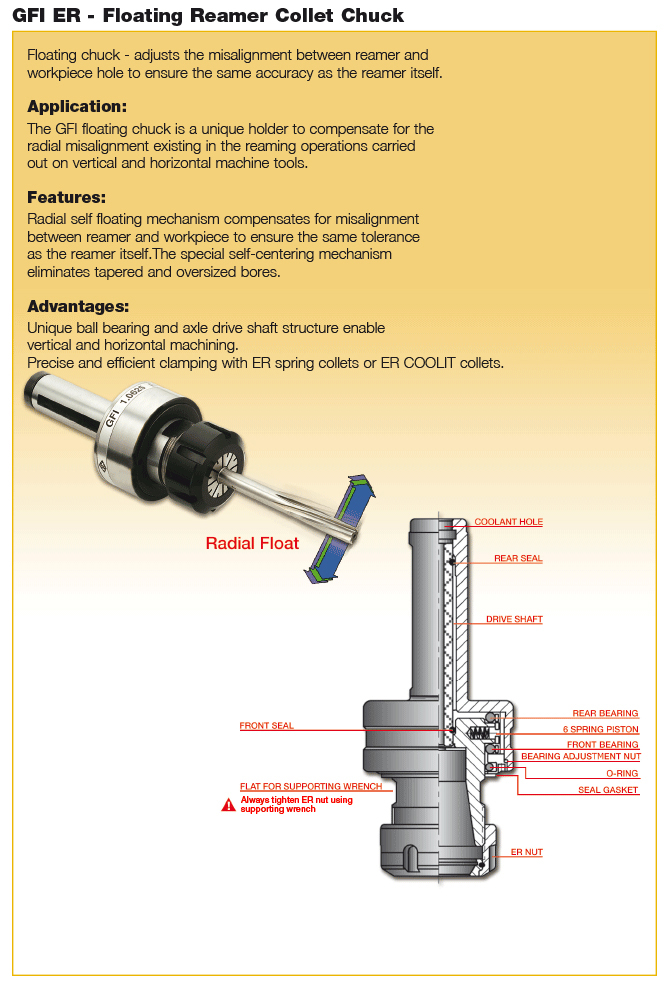

| 系列描述 | 带圆柱柄的浮动铰刀DIN6499标准筒夹 | 系列名称 | GFI ST-ER |
| 备注 | 最高转数2000RPM 关于应用信息 点击“更多信息” | 品牌 | Iscar |
| COO | Israel |
Shipping Info
包装重量
0.5760
名字
Reamer Holders
系列名称
GFI ST-ER
品牌
Iscar
