产品规格
| Tool Type | Solid, Turning & Grooving | Overall Length (OAL) | 50 mm |
| 适用材料 | | 钢 | 不锈钢 | 铸铁 | 硬材料 | 高温合金 | | Corner Radius (RE) | 0.5 mm |
| Cutting Depth Maximum (CDX) | 4.1 mm | Connection Diameter Machine Side (DCONMS) | 10 mm |
| Cutting Width (CW) | 4.1 mm | Functional Width (WF) | 4 mm |
| 切削刃材质 | Carbide | Minimum Bore Diameter (DMIN) | 10 mm |
| 等级 | IC908 | 应用 | | 内孔拉削加工 | 外圆拉削加工 | |
| 涂层 | TiAlN | 刀体材质 | Carbide |
| 测量方式 | Metric | 单位 | M |
产品特性

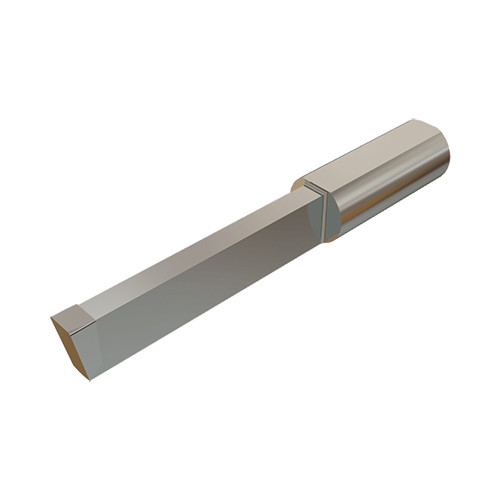

| 系列描述 | DIN138平键加工刀片，用于在车铣机床上拉削键槽，键槽紧公差范围为C11。 | COO | Israel |
| 备注 | 典型加工参数：Vc = 4000-8000 mm/min, ap = 0.02-0.08 mm |
Shipping Info
包装重量
0.0450
