产品规格

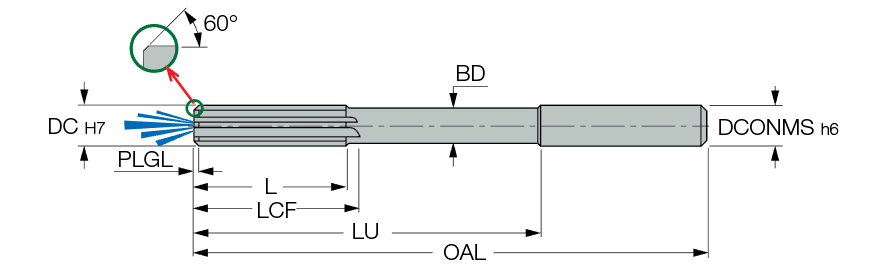

| Cutting Diameter (DC) | 5.5 mm | 涂层 | evotec for reamers UOP |
| 应用 | | 盲孔 | 盲孔 & 垂直孔 | 盲孔 & 径向孔 | | Coolant Supply Property (CSP) | Coolant Thru |
| Usable Length (LU) | 40 mm | Length Chip Flute (LCF) | 17 mm |
| Cutting Edge Length (L) | 12 mm | 测量方式 | Metric |
| Connection Diameter Machine Side (DCONMS) | 6 mm | Tool Type | Solid Carbide Reamers |
| Flute Count (NOF) | 4 | 刀体材质 | Carbide |
| Overall Length (OAL) | 76 mm | Body Diameter (BD) | 4.1 mm |
| 等级 | EVO | 单位 | M |
产品特性

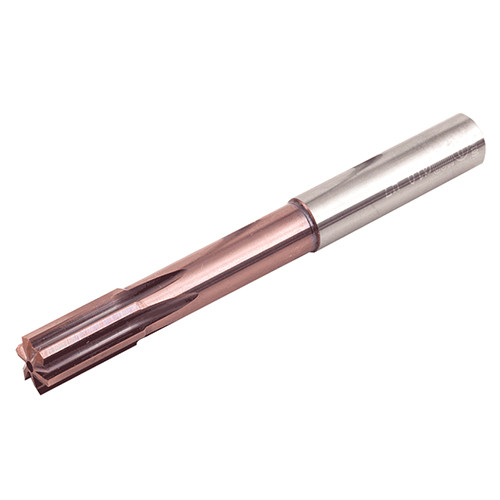

| 系列描述 | MTR UOP硬质合金直槽铰刀，PVD涂层，直柄，内冷，用于高速盲孔加工，不等齿距防止振动 | COO | Italy |

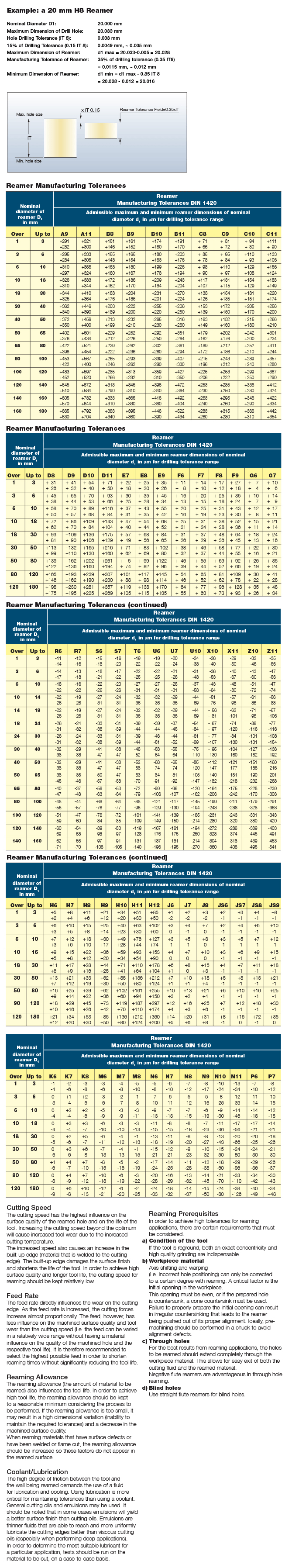

| 备注 | EVO是一种由高硬度的亚细晶IC07硬质合金基材和超薄硅基PVD涂层组成的材质，涂层基于高密度等离子体(HDP)技术。 孔公差：H7 制造公差参照DIN1420 |
Shipping Info
包装重量
0.0260
