产品规格

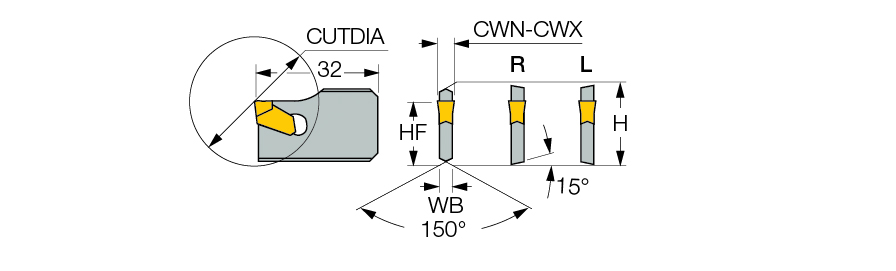

| Shank Height (H) | 19 mm | Tool Type | Blades and adapters for Parting & Grooving |
| Body Width (WB) | 1.6 mm | Work Piece Parting Diameter Maximum (CUTDIA) | 36 mm |
| Cutting Width Minimum (CWN) | 1.8 mm | Cutting Direction (HAND) | Neutral |
| Cutting Width Maximum (CWX) | 2.69 mm | 测量方式 | Metric |
| Overall Length (OAL) | 32 mm | Tool Assembly Length (LTA) | 18.72 mm |
| 应用 | | 切断加工 | 外圆切槽加工 | | 单位 | M |
| 刀体材质 | Steel |
产品特性

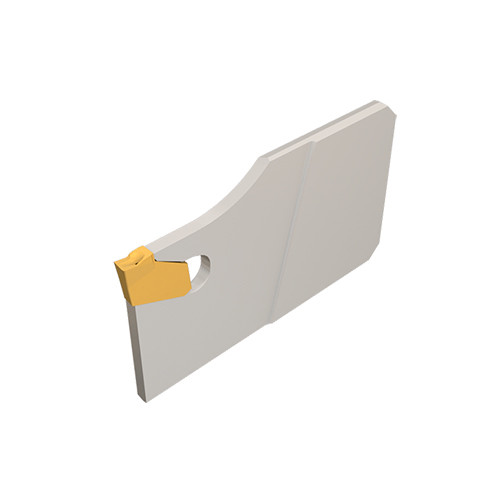

| 系列描述 | 单头刀板，用于夹持SELF-GRIP自夹式切断切槽刀片 | 系列名称 | SGB |
| COO | Israel | 品牌 | Iscar |
Shipping Info
包装重量
0.0130
名字
Parting Off Indexable Holders
系列名称
SGB
品牌
Iscar
