DGFH 32-4
Double-ended parting and grooving blades carrying DO-GRIP and HELI-GRIP double-ended inserts. Blades with coolant channels are designated with "C".
Price: Log in For Price
产品规格

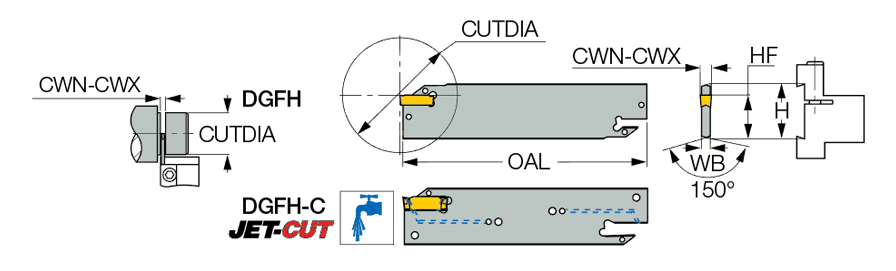

| Shank Height (H) | 32 mm | Tool Type | Blades and adapters for Parting & Grooving |
| Cutting Width Minimum (CWN) | 4 mm | Work Piece Parting Diameter Maximum (CUTDIA) | 100 mm |
| Cutting Width Maximum (CWX) | 4 mm | Cutting Direction (HAND) | Neutral |
| Overall Length (OAL) | 150 mm | 测量方式 | Metric |
| Functional Length (LF) | 150 mm | Body Width_2 (WB_2) | 3.2 mm |
| 应用 | | 切断加工 | 外圆切槽加工 | | Tool Assembly Length (LTA) | 35.03 mm |
| Number of Pocket (NOP) | 2 | 单位 | M |
| 刀体材质 | Steel |
产品特性
| 系列描述 | Double-ended parting and grooving blades carrying DO-GRIP and HELI-GRIP double-ended inserts. Blades with coolant channels are designated with "C". | 系列名称 | DGFH |
| 备注 | DG..1.0刀片可夹持于规格为2及3的定位槽，需修磨刀板定位槽，点击“更多信息” | 品牌 | Iscar |
| COO | Israel |
Shipping Info
包装重量
0.1220
名字
Parting Off Indexable Holders
系列名称
DGFH
品牌
Iscar
Related Documentation
For DG.-1mm inserts, modify holder pocket according to depth capacity table.
