产品规格

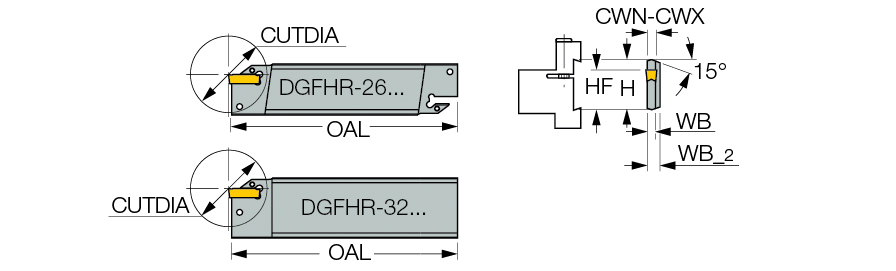

| Shank Height (H) | 32 mm | 刀体材质 | Steel |
| Body Width (WB) | 1.6 mm | Tool Type | Blades and adapters for Parting & Grooving |
| Cutting Width Minimum (CWN) | 1.9 mm | Work Piece Parting Diameter Maximum (CUTDIA) | 42 mm |
| Cutting Width Maximum (CWX) | 2.5 mm | Cutting Direction (HAND) | Left Hand |
| Overall Length (OAL) | 110 mm | 测量方式 | Metric |
| Functional Length (LF) | 110 mm | Body Width_2 (WB_2) | 8 mm |
| 应用 | | 切断加工 | 外圆切槽加工 | | Tool Assembly Length (LTA) | 33.3 mm |
| Number of Pocket (NOP) | 1 | 单位 | M |
产品特性
| 系列描述 | 强固型切断、切槽双定位槽刀板及单定位槽刀板，夹持双头刀片DO-GRIP | 系列名称 | DGFHR/L |
| 备注 | 刀片切深限制Tmax=18 mm。如果需要更大的切深，需修磨刀片为单头。 DG..1.0 刀片可装夹于定位槽宽度为2及3的刀杆，刀杆定位槽处做修磨处理，点击“更多信息” | 品牌 | Iscar |
| COO | Israel |
Shipping Info
包装重量
0.1850
名字
Parting Off Indexable Holders
系列名称
DGFHR/L
品牌
Iscar
Related Documentation
For DG.-1... inserts, modify holder pocket according to depth capacity table.
