产品规格

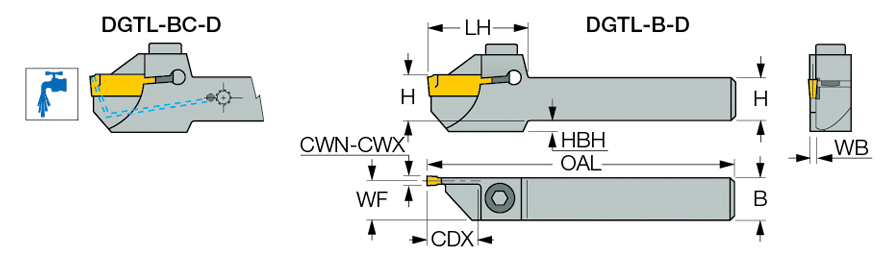

| Shank Height (H) | 12 mm | 应用 | | 切断加工 | 外圆切槽加工 | |
| Shank Width (B) | 12 mm | 刀体材质 | Steel |
| Body Width (WB) | 1.6 mm | Tool Type | Parting & Grooving Tools |
| Cutting Width Minimum (CWN) | 1.9 mm | Cutting Direction (HAND) | Left Hand |
| Cutting Width Maximum (CWX) | 2.5 mm | 测量方式 | Metric |
| Overall Length (OAL) | 140 mm | Tool Assembly Length (LTA) | 40.4 mm |
| Head Length (LH) | 29.6 mm | 单位 | M |
| Cutting Depth Maximum (CDX) | 15 mm |
产品特性
| 系列描述 | 整体式强固型切断、切槽刀杆（带内冷却通孔及不带），夹持双头刀片DGNC | 系列名称 | DGTR/L-B/BC-D |
| 备注 | 重要提示：1.4mm切宽的刀片，仅适合装夹于切宽1.4mm的刀杆 DGN/R/L 1 mm刀片可装夹于定位槽宽度为2及3的刀杆 需参照“依据工件直径确定切深”表对切宽为2及3的刀杆定位槽处做修磨处理，点击“更多信息” | 品牌 | Iscar |
| COO | Israel |
Shipping Info
包装重量
0.1960
名字
Parting Off Indexable Holders
系列名称
DGTR/L-B/BC-D
品牌
Iscar
Related Documentation

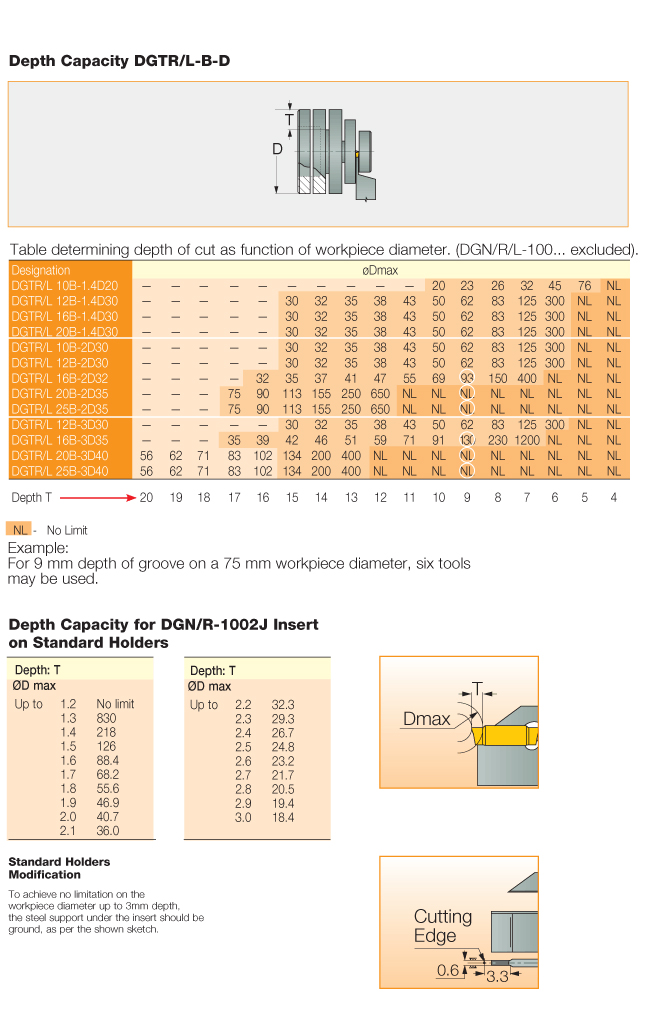

DG..1.0 insert can be mounted into pocket sizes 2 and 3. For DGN/R/L 1 mm inserts' depth capacity table and modification instructions for the holder pocket, see below.
