产品规格

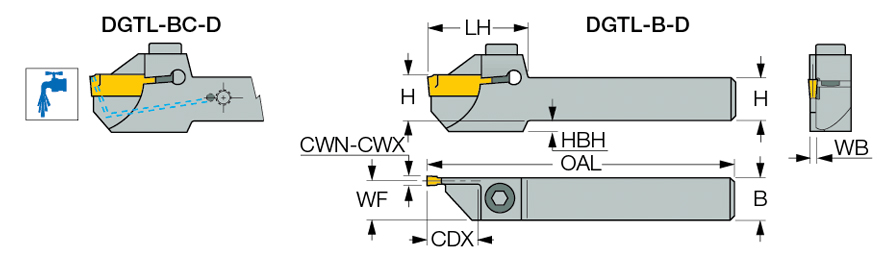

| Shank Height (H) | 3/8″ | 应用 | | 切断加工 | 外圆切槽加工 | |
| Shank Width (B) | 3/8″ | 刀体材质 | Steel |
| Body Width (WB) | 0.063″ | Tool Type | Parting & Grooving Tools |
| Cutting Width Minimum (CWN) | 0.075″ | Cutting Direction (HAND) | Left Hand |
| Cutting Width Maximum (CWX) | 0.1″ | 测量方式 | Inch |
| Overall Length (OAL) | 5-1/2″ | Tool Assembly Length (LTA) | 1.56″ |
| Head Length (LH) | 1.2″ | 单位 | I |
| Cutting Depth Maximum (CDX) | 0.591″ |
产品特性
| 系列描述 | 整体式强固型切断、切槽刀杆（带内冷却通孔及不带），夹持双头刀片DGNC | 系列名称 | DGTR/L-B/BC-D |
| 备注 | Important: 1.4 mm (.055) width inserts should be used only on tools for 1.4 mm specific width tools DGN/R/L 1 mm (.039) inserts can also be mounted into pocket sizes 2 and 3. For insert depth capacity table and modification instructions for the 2 and 3 holder pockets, click on More Info | 品牌 | Iscar |
| COO | Israel |
Shipping Info
包装重量
0.3153
名字
Parting Off Indexable Holders
系列名称
DGTR/L-B/BC-D
品牌
Iscar
Related Documentation
DG..1.0 insert can be mounted into pocket sizes 2 and 3. For DGN/R/L 1 mm inserts' depth capacity table and modification instructions for the holder pocket, see below.
