产品规格

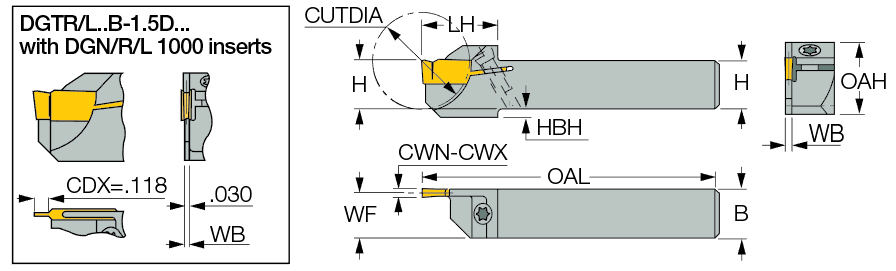

| Shank Height (H) | 1/2″ | 应用 | | 切断加工 | 外圆切槽加工 | |
| Shank Width (B) | 1/2″ | 刀体材质 | Steel |
| Body Width (WB) | 0.063″ | Tool Type | Parting & Grooving Tools |
| Cutting Width Minimum (CWN) | 0.075″ | Work Piece Parting Diameter Maximum (CUTDIA) | 1″ |
| Cutting Width Maximum (CWX) | 0.1″ | Cutting Direction (HAND) | Right Hand |
| Overall Length (OAL) | 4.7″ | 测量方式 | Inch |
| Head Length (LH) | 3/4″ | Tool Assembly Length (LTA) | 1.14″ |
| Overall Height (OAH) | 0.65″ | 单位 | I |
产品特性
| 系列描述 | 切断切槽短头刀杆，用于数控机床及瑞士自动车床 | 系列名称 | DGTR/L-B-D-SH |
| 备注 | DGN/R/L 1 mm刀片可装夹于定位槽宽度为2及3的刀杆。需参照“依据工件直径确定切深”表对切宽为2及3的刀杆定位槽处做修磨处理，点击“更多信息”。 | 品牌 | Iscar |
| COO | Israel |
Shipping Info
包装重量
0.3902
名字

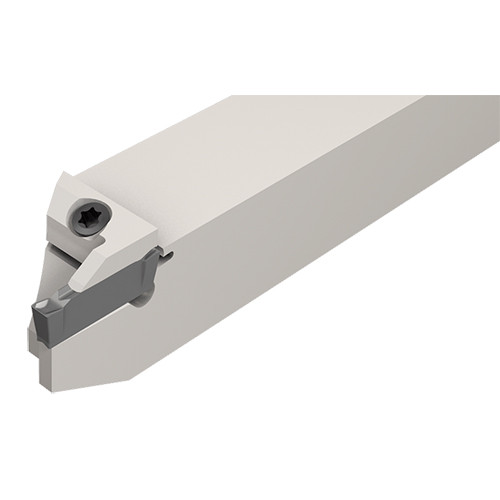

Parting Off Indexable Holders
系列名称
DGTR/L-B-D-SH
品牌
Iscar
Related Documentation

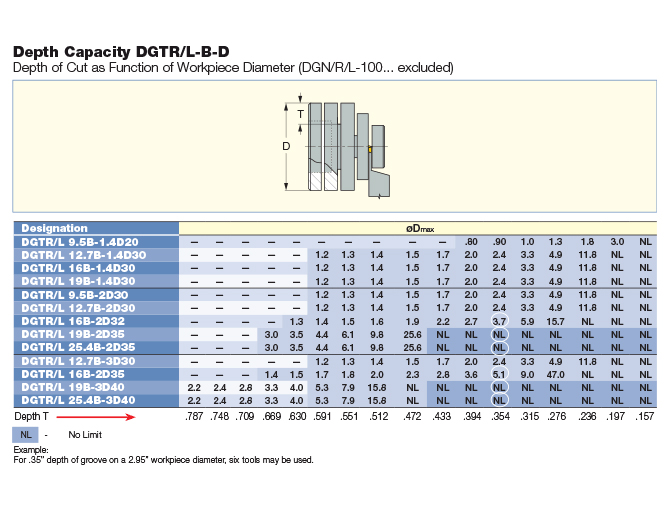

DG..1.0 insert can be mounted into pocket sizes 2 and 3. For DGN/R/L 1 mm inserts' depth capacity table and modification instructions for the holder pocket, see below.
