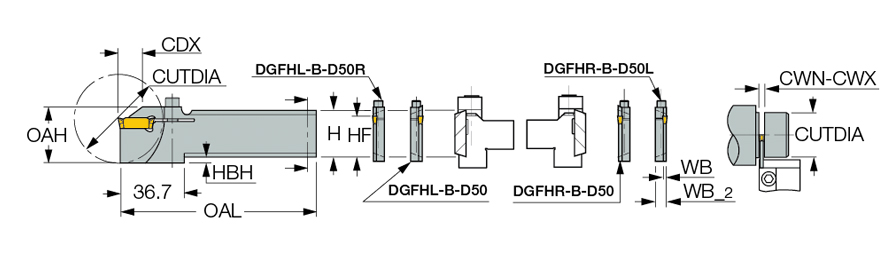

产品规格
| Shank Height (H) | 32 mm | 刀体材质 | Steel |
| Body Width (WB) | 1.6 mm | Tool Type | Blades and adapters for Parting & Grooving |
| Cutting Width Minimum (CWN) | 1.9 mm | Work Piece Parting Diameter Maximum (CUTDIA) | 50 mm |
| Cutting Width Maximum (CWX) | 2.5 mm | Cutting Direction (HAND) | Left Hand |
| Overall Length (OAL) | 120 mm | 测量方式 | Metric |
| Cutting Depth Maximum (CDX) | 18 mm | Body Width_2 (WB_2) | 8 mm |
| Overall Height (OAH) | 31.5 mm | Tool Assembly Length (LTA) | 50.8 mm |
| Functional Length (LF) | 120 mm | 单位 | M |
| 应用 | | 切断加工 | 外圆切槽加工 | |
产品特性
| 系列描述 | 双头及单头，切断切槽强固刀板，用于夹持双头DGN刀片 | 系列名称 | DGFHR/L-B-D..(R/L) |
| 备注 | 双头刀片切深限制Tmax=18 mm。如果需要更大的切深，需修磨刀片为单头。 DG..1.0 刀片可装夹于定位槽宽度为2及3的刀杆，刀杆定位槽处做修磨处理 | 品牌 | Iscar |
| COO | Israel |
Shipping Info
包装重量
0.2070
名字
Parting Off Indexable Holders
系列名称
DGFHR/L-B-D..(R/L)
品牌
Iscar
