产品规格
| Shank Height (H) | 25 mm | 应用 | | 切断加工 | 外圆切槽加工 | 外圆螺纹加工切槽车削 T | |
| Shank Width (B) | 25 mm | 刀体材质 | Steel |
| Cutting Width Minimum (CWN) | 0.5 mm | Tool Type | Parting & Grooving Tools |
| Cutting Width Maximum (CWX) | 3.2 mm | Cutting Direction (HAND) | Right Hand |
| Overall Length (OAL) | 135 mm | 测量方式 | Metric |
| Head Length (LH) | 19.5 mm | Tool Assembly Length (LTA) | 43.47 mm |
| Cutting Depth Maximum (CDX) | 6.5 mm | 单位 | M |
产品特性

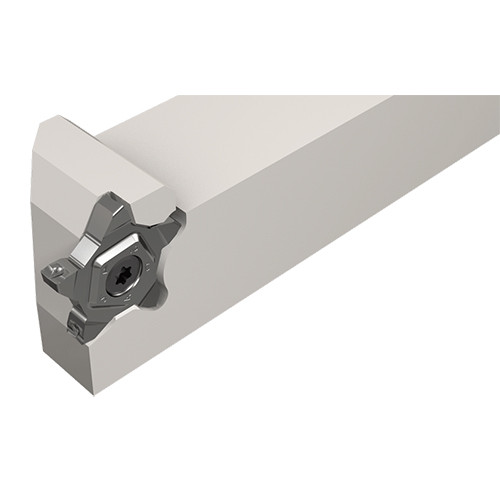

| 系列描述 | 夹持五角霸王刀片的刀杆，用于切槽、切断及精整车加工 | 系列名称 | PCHR/L-24 |

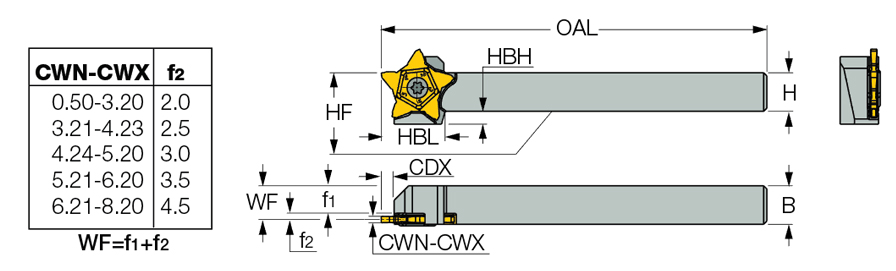

| 备注 | WF=f1+f2 (依据夹持刀片的宽度 (CW)) | 品牌 | Iscar |
| COO | Israel |
Shipping Info
包装重量
0.6570
名字
Parting Off Indexable Holders
系列名称
PCHR/L-24
品牌
Iscar
